Installation Cables - Сторінка 61 з 66

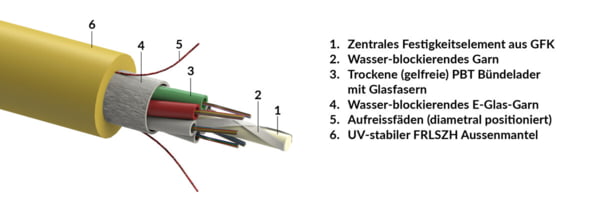

Gel-free stranded loose tube cable, universal-use, imp. rodent protection, FRLSZH sheath - yellow, Cca, 04x12-fibers G657.A1 (R873732)

Environmental Characteristics Operation temperature -40 °C to +70 °C / -40 °F to +158 °F Water penetration L = 3 m, h = 1 m, 24 h Water penetration test method IEC 60794-1-22 F5B Water penetration acceptance criteria no water leakage Temperature cycling acceptance criteria Δα ≤ 0,05 dB Temperature cycling -40 °C +70 °C […]

Gel-free stranded loose tube cable, universal-use, imp. rodent protection, FRLSZH sheath - yellow, Cca, 06x12-fibers G657.A1 (R873733)

Environmental Characteristics Operation temperature -40 °C to +70 °C / -40 °F to +158 °F Water penetration L = 3 m, h = 1 m, 24 h Water penetration test method IEC 60794-1-22 F5B Water penetration acceptance criteria no water leakage Temperature cycling acceptance criteria Δα ≤ 0,05 dB Temperature cycling -40 °C +70 °C […]

Gel-free stranded loose tube cable, universal-use, imp. rodent protection, FRLSZH sheath - yellow, Cca, 12x12-fibers G657.A1 (R873734)

Environmental Characteristics Operation temperature -40 °C to +70 °C / -40 °F to +158 °F Water penetration L = 3 m, h = 1 m, 24 h Water penetration test method IEC 60794-1-22 F5B Water penetration acceptance criteria no water leakage Temperature cycling acceptance criteria Δα ≤ 0,05 dB Temperature cycling -40 °C +70 °C […]

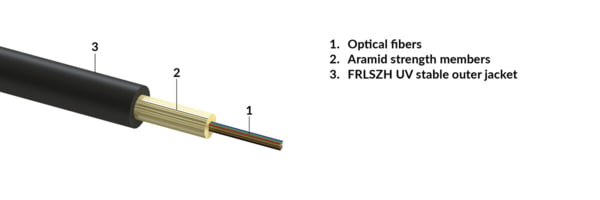

MiniCore cable, aerial-drop, universal-use, intensified, FRLSZH sheath - black, Cca, 02-fibers G657.A1 (R857731)

Environmental Characteristics Operation temperature -20 °C to +60 °C / -4 °F to +140 °F Temperature cycling acceptance criteria Δα ≤ 0,05 dB Temperature cycling -20 °C +60 °C / -4 °F +140 °F Temperature cycling - reversible acceptance criteria Δα ≤ 0,15 dB, reversible Temperature cycling - reversible test method IEC 60794-1-22:F1 Temperature cycling […]

MiniCore cable, aerial-drop, universal-use, intensified, FRLSZH sheath - black, Cca, 04-fibers G657.A1 (R857732)

Environmental Characteristics Operation temperature -20 °C to +60 °C / -4 °F to +140 °F Temperature cycling acceptance criteria Δα ≤ 0,05 dB Temperature cycling -20 °C +60 °C / -4 °F +140 °F Temperature cycling - reversible acceptance criteria Δα ≤ 0,15 dB, reversible Temperature cycling - reversible test method IEC 60794-1-22:F1 Temperature cycling […]

MiniCore cable, aerial-drop, universal-use, intensified, FRLSZH sheath - black, Cca, 06-fibers G657.A1 (R857733)

Environmental Characteristics Operation temperature -20 °C to +60 °C / -4 °F to +140 °F Temperature cycling acceptance criteria Δα ≤ 0,05 dB Temperature cycling -20 °C +60 °C / -4 °F +140 °F Temperature cycling - reversible acceptance criteria Δα ≤ 0,15 dB, reversible Temperature cycling - reversible test method IEC 60794-1-22:F1 Temperature cycling […]

MiniCore cable, aerial-drop, universal-use, intensified, FRLSZH sheath - black, Cca, 08-fibers G657.A1 (R857734)

Environmental Characteristics Operation temperature -20 °C to +60 °C / -4 °F to +140 °F Temperature cycling acceptance criteria Δα ≤ 0,05 dB Temperature cycling -20 °C +60 °C / -4 °F +140 °F Temperature cycling - reversible acceptance criteria Δα ≤ 0,15 dB, reversible Temperature cycling - reversible test method IEC 60794-1-22:F1 Temperature cycling […]

MiniCore cable, aerial-drop, universal-use, intensified, FRLSZH sheath - black, Cca, 12-fibers G657.A1 (R857735)

Environmental Characteristics Operation temperature -20 °C to +60 °C / -4 °F to +140 °F Temperature cycling acceptance criteria Δα ≤ 0,05 dB Temperature cycling -20 °C +60 °C / -4 °F +140 °F Temperature cycling - reversible acceptance criteria Δα ≤ 0,15 dB, reversible Temperature cycling - reversible test method IEC 60794-1-22:F1 Temperature cycling […]
