FM45 Connectors and accessories

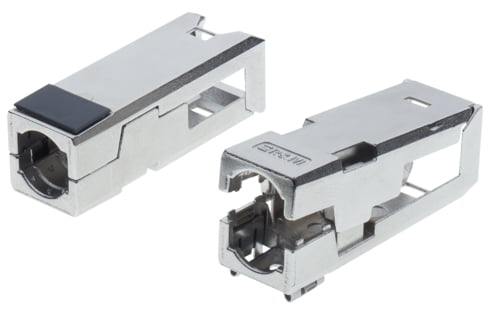

Housing FM45 IP20 metal housing (R510110)

Metal protective housing for field terminateable RJ45 connector with snap-in-latching. Protection class IP20 according to IEC 60529 for cable diameters of 4.5mm to 10.0mm.

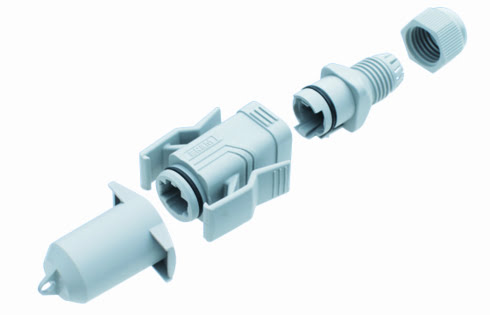

Housing FM45 IP67 Type06 housing (R320691)

Protective housing for field terminateable RJ45connector with snap-in-latching. Protection class IP67 according to IEC 60529 and protective housing according to IEC 61076-3-106 variant 06 for cable diameters of 5.0mm to 8.5mm.

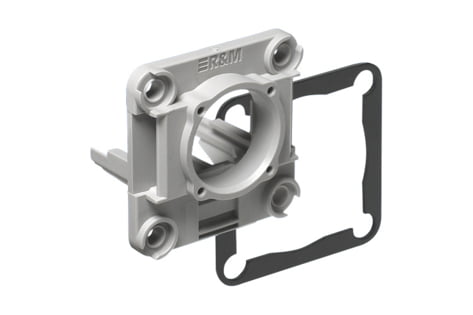

Mounting Frame FM45 IP67 Type06 frame (R309588)

Mounting frame Interbus designed for round mounting cutouts. Suitable for protective housing for field terminateable RJ45 plug with snap latch. Protection class IP67 according to IEC60529. Accommodates optional color coding. Polyamide, traffic gray (RAL 7042). Including gasket and screws M3 x 10mm.

Plug FM45 Cat.5e shielded or unshielded AWG 22 to 23 IP20 568A/B plastic housing R&M (R510667)

Field-terminated RJ45 plug connector, shielded and unshielded, Cat.5e 8-pole, terminated in IDC technology, suitable for solid or stranded wires, 2- to 8-wire conductors of diameter AWG 22 to AWG 23 (AWG 22/7 - 23/7), housing IP20, for cable diameters of 4.5mm to 8.0mm, coding in acc. with TIA 568A/B.

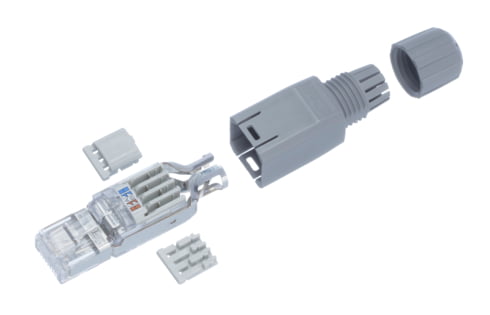

Plug FM45 Cat.5e shielded or unshielded AWG 23 to 26 IP20 568A/B plastic housing R&M (R312231)

Field-terminated RJ45 plug connector, shielded and unshielded, Cat.5e 8-pole, terminated in IDC technology, suitable for solid or stranded wires, 2- to 8-wire conductors of diameter AWG 23 to AWG 26 (AWG 23/7 - 26/7), housing IP20, for cable diameters of 4.5mm to 8.0mm, coding in acc. with TIA 568A/B.

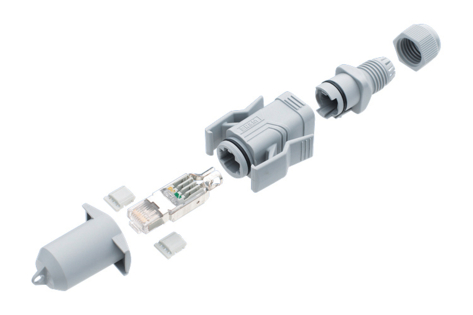

Plug FM45 Cat.5e shielded or unshielded AWG 23 to 26 IP67 568A/B Type06 housing (R314686)

Field-terminated RJ45 plug connector, shielded and unshielded, Cat.5e 8-pole, terminated in IDC technology, suitable for solid or stranded wires, 2- to 8-wire conductors of diameter AWG 23 to AWG 26 (AWG 23/7 - 26/7), housing IP67, for cable diameters of 5.0mm to 8.5mm, coding in acc. with TIA 568A/B.

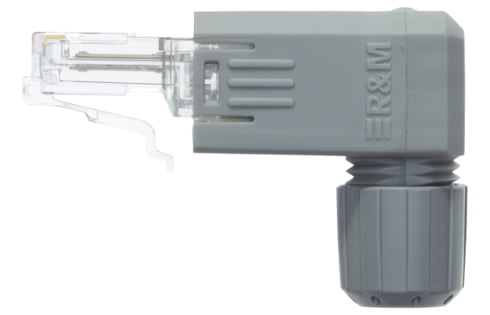

Plug FM45 Cat.5e unshielded AWG 23 to 26 IP20 568A/B 90° plastic housing (R803498)

Field-terminated RJ45 plug connector, unshielded, Cat.5e 8-pole, terminated in IDC technology, suitable for solid or stranded wires, 2- to 8-wire conductors of diameter AWG 23 to AWG 26 (AWG 23/7 - 26/7), angled housing IP20, for cable diameters of 4.5mm to 8.0mm, coding in acc. with TIA 568A/B.

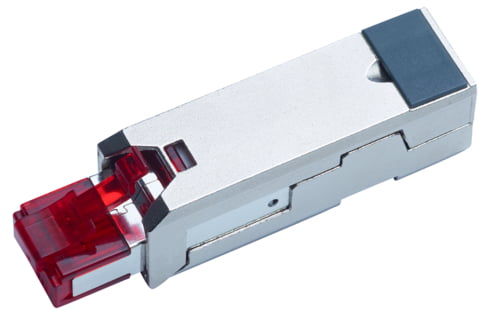

Plug FM45 Cat.6A shielded or unshielded AWG 22 to 26 IP20 568A/B metal housing (R814567)

Field-terminated RJ45 plug connector, shielded and unshielded, Cat.6 A8-pole, terminated in IDC technology, suitable for solid or stranded wires, 2- to 8-wire conductors of diameter AWG 22 to AWG 26 (AWG 22/7 - 26/7), housing IP20, for cable diameters of 4.5mm to 10mm, coding in acc. with TIA 568A/B.
