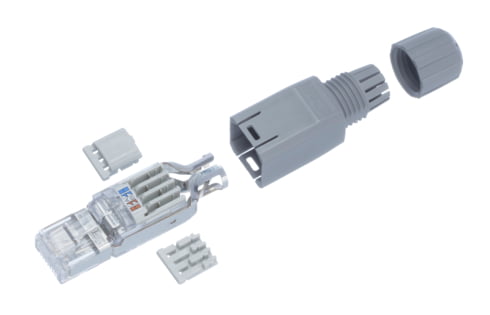

Plug FM45 Cat.5e shielded or unshielded AWG 22 to 23 IP20 568A/B plastic housing R&M (R510667)

Plug FM45 Cat.5e shielded or unshielded AWG 22 to 23 IP20 568A/B plastic housing R&M (R510667)

Plug FM45 Cat.5e shielded or unshielded AWG 22 to 23 IP20 568A/B plastic housing R&M (R510667)

Field-terminated RJ45 plug connector, shielded and unshielded, Cat.5e 8-pole, terminated in IDC technology, suitable for solid or stranded wires, 2- to 8-wire conductors of diameter AWG 22 to AWG 23 (AWG 22/7 - 23/7), housing IP20, for cable diameters of 4.5mm to 8.0mm, coding in acc. with TIA 568A/B.

Артикул: R510667 Категорія:

Scope of supply

  • Plug FM45 Cat.5e

  • Plastic housing with nut

  • Copper foil

  • Installation instructions

Electrical Data

Nominal Current

1.55A @20°C

Input-Output Resistance

< 100 mΩ

Insulation Resistance

> 1GΩ (100V)

Contact Resistance

Wire - IDC < 1mΩStranded wire - IDC < 5mΩSignal contact - screen < 20mΩ

Dielectric Strength

Contact - contact >1000VDCShield - contact >1500VDC, 1min.

Environmental Characteristics

Operation temperature

-20 °C to +70 °C / -4 °F to +158 °F

Mechanical Data

Dimensions

59.0 mm x 14.0 mm x 14.6 mm / 2.323 in x 0.551 in x 0.575 in (W x H x D)

Design

straight

Color

Plug: tranparentHousing: traffic gray (RAL 7042)

Connection Type

IDC according IEC 60352-4*, tin-plated, approx. 5µm*Re-terminations may be performed with wire of either larger or equal size than originally terminated.

Mating Cycles

> 750

Material

Polycarbonate (plug) polyamide (housing)

Technical Data

Wire type

Wire or stranded wire

Conductor Construction

AWG 22 - 23

Wire diameter

Wire: 0.54 - 0.61mmStranded wire: 0.25mm2 - 0.32mm2

Number of wires

8

Cable overall diameter

4.5 - 8.0 mm

Shield jacket material

Brass (CuZn) hot-dip galvanized, 3µm

Pollution Degree

2 according to IEC 61010-1

Dust Protection

No

Wiring diagram

T568A and T568B

Colour Coding

Yes, optional

Contact material

Bronze (CuSn6)

Contact Surface

>1.2µm gold over 1.2µm nickel

Re-termination

≥4 according IEC 60352-4Re-terminations may be performed with wire of either larger or equal size than originally terminated.

UL Classification

UL94-V0

Standard

ISO/IEC 11801

IEC 60603-7-2/3

EN 50173

ANSI/TIA-568.2

PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt)

IEC 60512-00-001/002

Approved wire diameter with insulation

1.6 mm / 0.063 in
