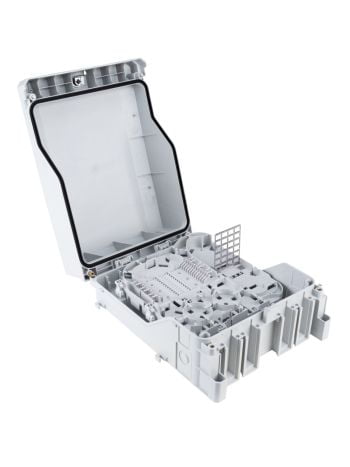

Polaris-box 24 with external mounting points equipped with a swiveling fiber inlay.
On the top rigth side adapter field for up to 24 adapter LC-D, SC or E-2000.
On the top left side splice area for up to 144 splice with 12 x 1TPU 12 x crimp (ANT) or 12 x shrink (HS) FMTS trays.
Additional fiber storage are below the fiber inlay.
Max. Capacity: 144 splices connections and 24 adapters
Polaris-box 24 with external mounting points equipped with a swiveling fiber inlay.
On the top rigth side adapter field for up to 24 adapter LC-D, SC or E-2000.
On the top left side splice area for up to 144 splice with 12 x 1TPU 12 x crimp (ANT) or 12 x shrink (HS) FMTS trays.
Additional fiber storage are below the fiber inlay.
Max. Capacity: 144 splices connections and 24 adapters

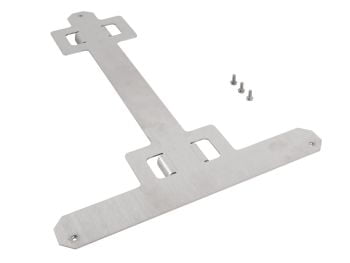

Pole mounting-Set for an easy mounting of the Polaris-box 24 on a pole with Ø 60mm-Ø 250mm
Polaris-box 36 with external mounting points equipped with a swiveling fiber inlay. On the top rigth side adapter field for up to 36 adapter LC-D, SC or E-2000. On the top left side splice area for up to 288 splice with 24 x 1TPU 12 x crimp (ANT) or 12 x shrink (HS) FMTS trays. Additional fiber storage arebelow the fiber inlay.
Max. Capacity: 288 splices connections and 36 adapters
Polaris-box 36 with external mounting points equipped with a swiveling fiber inlay. On the top rigth side adapter field for up to 36 adapter LC-D, SC or E-2000. On the top left side splice area for up to 288 splice with 24 x 1TPU 12 x crimp (ANT) or 12 x shrink (HS) FMTS trays. Additional fiber storage arebelow the fiber inlay.
Max. Capacity: 288 splices connections and 36 adapters
Pole mounting-Set for an easy mounting of the Polaris-box 36 on a pole with Ø 60mm-Ø 250mm

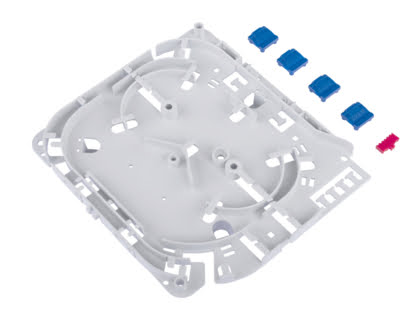

The fiber insert kit allows an additional splice unit to be easily retrofitted for up to 12 additional splice connections in the Polaris-box 4.

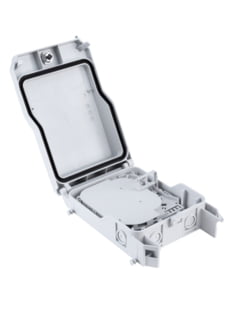

The Polaris-box 4 is the smallest in the family and fits even into tiny spaces.
The basic configuration with one fiber inlay supports up to 12 crimp (ANT) or shrink (HS) splice connections.
It‘s hard to believe, but the box offers space for an additional fiber storage under the first insert.
If required, a second fiber inlay can be retrofitted.
For plug connections, a coupling field for 2 or 4 SC, LC duplex or E-2000™ adapters is available.
