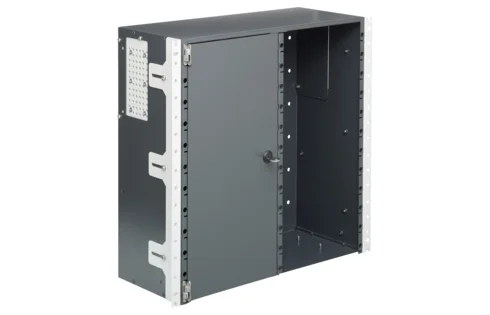

19" 10U CombiMODULE Left ODF, 144xE-2000™-Compact G.652.D, APC, ceramic, C/1, SE heat shrink (R814295)

19" 10U CombiMODULE Left ODF, 144xE-2000™-Compact G.652.D, APC, ceramic, C/1, SE heat shrink (R814295)

19" 10U CombiMODULE Left ODF, 144xE-2000™-Compact G.652.D, APC, ceramic, C/1, SE heat shrink (R814295)

Completely assembled splice and patch unit with 288 fiber connections from patch insert to SCM splice trays SE.

Артикул: R814295 Категорія:

Scope of supply

  • Complete CombiMODULE housing with fiber management

  • 12 Patch inserts, each equipped with 12xE-2000™-Compact adapters. System connection cables inserted and put in place.

  • Tray brackets for SCMtrays

  • SCM cover set

  • 12 SCM splice trays for shrink splices

  • Labeling set

  • Installation instructions

Mechanical Data

Dimensions

445.0 mm x 480.0 mm x 185.0 mm / 17.52 in x 18.898 in x 7.283 in (W x H x D)

Technical Data

Fiber type

Singlemode (SM)

Fiber class

G.652.D (OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

144

Connector type (A)

E-2000™-Compact

Connector color (A)

green

Lever- / frame-coding (A)

Color

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Return loss grade RL (A)

1

Attenuation grade IL (A)

C

Amount of height units

10 U

Rack mounting version

patch panel

Adapter fastening method

end cap snap-in

Assembly

fully populated

Capacity (ports)

144

Sleeve material

ceramic

Version

splice

Standard

Adapter acc. with IEC 61754-15 and EN 186270

IEC 60297-3: 19-inch (482.6 mm) rack

Fan-out color code: DIN VDE 0888

Amount of height units

10

Fastening

19 "
