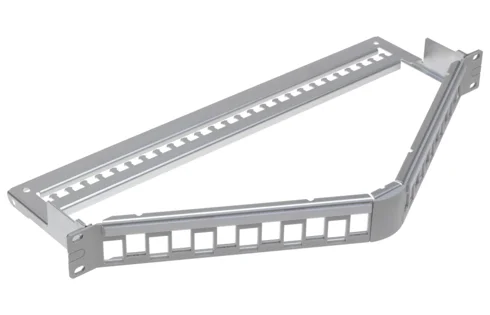

19" 1U Angled Patch Panel 24-Port, Snap-in, gray, empty (R506796)

19" 1U Angled Patch Panel 24-Port, Snap-in, gray, empty (R506796)

With a capacity of up to 24 Snap-in connection modules shielded or unshielded.

Артикул: R506796 Категорія:

Scope of supply

  • 19" 1U 24-port angled, metal patch panel, empty, integrated cable tie shelf

  • 19" mounting kit

  • Labeling kit

  • Installation instructions

Mechanical Data

Dimensions

482.6 mm x 43.2 mm x 245.3 mm / 19 in x 1.701 in x 9.657 in (W x H x D)

Color

steel, blue, chromatized / front, gray (NCS 2502-B)

Material

steel: DC01 (1.0330), 1.5 mm

Technical Data

Amount of height units

1 U

Rack mounting version

sub-rack

Assembly

empty

Holder for connector / module

Snap-in frame

Capacity (ports)

24

Standard

UL Listed

Amount of height units

1

Fastening

19 "

Angled patch panel with integrated cable tie shelf, optional direct grounding, 19" fastening kit, labeling field, accepting the snap-in type color coding clips in 8 colors. Material: sub-rack made of sheet steel (DC01) 1.5 mm, color blue chromatized, screen made of plastic (ABS), halogen-free, color medium gray (NCS 2502-B).

With a capacity of up to 24 shielded or unshielded RJ45 connection modules of Category5, class D, Category 6, class E, Real10 Category 6 and Category 6
A
, class E
Afor establishing transmission channels with up to 4 plugged connections.

Інструкції з встановлення

Завантажити
