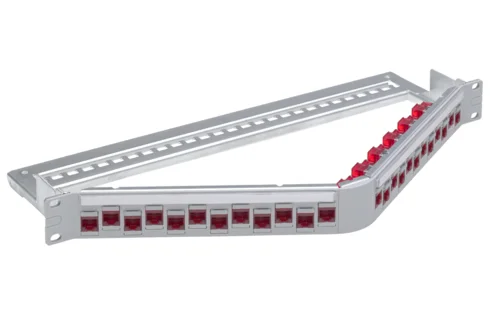

19" 1U 24-port angled, metal patch panel, empty, integrated cable tie shelf
24 Cat. 6
AEL connection modules, RJ45/u incl. dust covers
19" mounting kit
482.6 mm x 43.2 mm x 245.3 mm / 19 in x 1.701 in x 9.657 in (W x H x D)
steel, blue, chromatized / front, gray (NCS 2502-B)
steel: DC01 (1.0330), 1.5 mm
|Number of connectors (A)|
|Category connector (A)|
Cat. 6A ISO
|Connector type (A)|
|Shielding connector (A)|
|Protection class IP (A)|
|Amount of height units|
|Rack mounting version|
|Holder for connector / module|
IEC 60603-7-41: Electrical Characteristics of the Telecommunication Outlets
|Amount of height units|
Angled patch panel with integrated cable tie shelf, 19" fastening kit, labeling field, accepting the snap-in type color coding clips in 8 colors. Material: sub-rack made of sheet steel (DC01) 1.5 mm, color blue chromatized, screen made of plastic (ABS), halogen-free, color medium gray (NCS 2502-B).
24 ports populated with
RJ45 connection module of Cat. 6
EL, for the setting up of transmission channels of Class E
with up to 4 connectors acc. to ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1), complies with Cat. 6
requirements of the standards ISO/IEC 11801, EN 50173-1, as well the U.S. standard Cat. 6
Aaccording to TIA/EIA 568.2-D, re-embedded tested in acc. with IEC 60603-7-41 and 60512-27-100, interoperable and backwards compatible with Category 6 and Category 5e.
Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.
Tested in line with R&M's manufacturing control, performing 100% inspection. Each module has an own serial number and is traceable.
Compatible with RJ standard plugs (RJ11, RJ12, RJ45), connection of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 without special tools. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with ≥4 insertion cycles acc. to IEC 60352-3, contact resistance <5 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002. With integral cable strain relief, including dust cover. Red / black plastic housing.
Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Connection module Cat. 6
AEL, red / black, unshielded, dust cover and snap-in frame (black).
