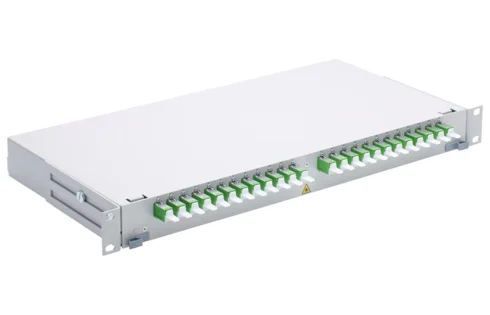

19" 1U FibereasyRack2 24xE-2000™ singlemode, APC, ceramic (R816054)

19" 1U FibereasyRack2 24xE-2000™ singlemode, APC, ceramic (R816054)

Артикул: R816054 Категорія:

Scope of supply

  • 19" 1U slide-in unit, fastening material, labeling strips and installation instructions

  • One 2 x 15 mm radiusguards

  • Fastening strap for safe cable fixation

  • Front panel equipped with adapters

Mechanical Data

Dimensions

43.6 mm x 482.6 mm x 225.0 mm / 1.717 in x 19 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

steel: DC01 (1.0330), 1.0 mm

Technical Data

Fiber type

Singlemode (SM)

Number of connectors (A)

24

Connector type (A)

E-2000™

Connector color (A)

green

Color (A2)

green

Lever- / frame-coding (A)

Color

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Amount of height units

1 U

Rack mounting version

patch panel

Adapter fastening method

end cap

Assembly

fully populated

Capacity (ports)

24

Sleeve material

ceramic

Version

breakout

Standard

Adapter acc. with IEC 61754-15 and EN 186270

IEC 60297-3: 19-inch (482.6 mm) rack

Amount of height units

1

Fastening

19 "
