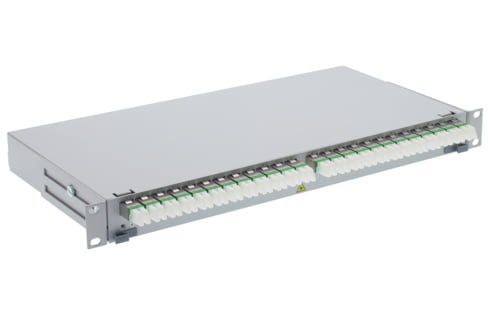

19" 1U FibereasyRack2 6xE-2000™-Compact OM3/OM4, PC, ceramic (R816223)

19" 1U FibereasyRack2 6xE-2000™-Compact OM3/OM4, PC, ceramic (R816223)

Артикул: R816223 Категорія:

Scope of supply

  • 19" 1U slide-in unit, fastening material, labeling strips and installation instructions

  • One 2 x 15 mm radiusguards

  • Fastening strap for safe cable fixation

  • Front panel equipped with adapters

Mechanical Data

Dimensions

43.6 mm x 482.6 mm x 225.0 mm / 1.717 in x 19 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

steel: DC01 (1.0330), 1.0 mm

Technical Data

Fiber type

Multimode (MM)

Number of connectors (A)

6

Connector type (A)

E-2000™-Compact

Connector color (A)

beige

Color (A2)

turquoise/aqua

Lever- / frame-coding (A)

Color

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Amount of height units

1 U

Rack mounting version

patch panel

Adapter fastening method

end cap snap-in

Assembly

partly populated

Capacity (ports)

24

Sleeve material

ceramic

Version

breakout

Standard

Adapter acc. with IEC 61754-15 and EN 186270

IEC 60297-3: 19-inch (482.6 mm) rack

Amount of height units

1

Fastening

19 "

Assembled with 6 x

E-2000™-Compact adapter (LSHRJ) multimode, duplex adapter in acc. with IEC 61754-15:2009 and EN 186270. Flangeless body and integral quick-mounting clip. Zirconia (ceramic) alignment sleeve, metallic housing, material X10CrNi18-8, beige inner housing (multimode PC), turquoise coding clips (OM3/OM4), material PBT / UL 94 V-0, integral self-closing metal laser protection flaps, semi-transparent plastic dust cover, allowing optical testing with test lasers without removing the cover. Adapter qualified in accordance with IEC 61753-1 for category U (uncontrolled environment).


Optical specifications:

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mechanical specifications:

  • Mating cycles: min. 1000

  • Pull-out force: min. 70 N

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 1000

  • Pull-out force: min. 70 N
