19" 1U HD Patch Panel 24xRJ45/s, Cat. 6A, black, fully populated (R512724)

19" 1U HD Patch Panel 24xRJ45/s, Cat. 6A, black, fully populated (R512724)

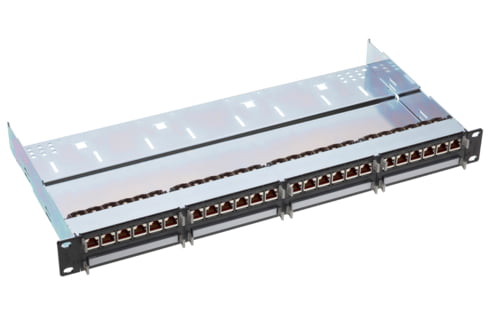

Metal patch panel with integrated cable tieshelf.

Артикул: R512724 Категорія:

Scope of supply

  • 19" 1U HD patch panel

  • 4 6-port/s connection module holders HD

  • Grounding system

  • 24 connection modules RJ45/s incl. EMC covers and dust covers

  • 19" mounting kit

  • Cable ties

  • 4 velcro strips

  • Installation instructions

Mechanical Data

Dimensions

482.6 mm x 43.2 mm x 225.0 mm / 19 in x 1.701 in x 8.858 in (W x H x D)

Color

steel, blue, chromatized / front, black (RAL 9005)

Material

steel: DC01 (1.0330), 1.5 mm

Technical Data

Category connector (A)

Cat. 6A ISO

Connector type (A)

RJ45

Shielding connector (A)

shielded

PoE

Yes

Amount of height units

1 U

Rack mounting version

patch panel

Assembly

fully populated

Capacity (ports)

24

Standard

IEC 60603-7-51: Electrical Characteristics of the Telecommunication Outlets

ISO/IEC 11801

EN 50173-1

Amount of height units

1

Fastening

19 "

Modular patch panel with integrated cable tie shelf, accommodating up to four connection module holders HD Panel, installation-friendly thanks to snap-and-go technique, featuring a complete grounding system and optional blind covers. Designed to accommodate the R&M HD security system, with its 2-level protection concept: color coding, locking option or automated infrastructure management systems. Optional labeling strips, fastening kit, integrated port numbering, tool-free locking and unlocking system. Automatic ground contacting by spring contacts. Sub-rack material sheet steel, colorless chromatized, side panels plastic (PC), halogen-free, color black (RAL 9005).

4 slots populated with

Connection module holders HD, 6-port with blind element, shielded, plastic (PC), fiberglass-reinforced, halogen-free, color black (RAL 9005).

24 ports populated with

RJ45 connection module of Cat. 6
A
ISO, for the setting up of transmission channels of Class E
A
with up to 4 plugged connections acc. to ISO/IEC 11801, EN 50173-1 (DIN EN 50173-1) and Class F on 2 pairs, complies with Cat. 6
A
requirements of the standards ISO/IEC 11801, EN 50173-1, as well the U.S. standard Cat. 6
Aaccording to TIA/EIA 568.2-D, re-embedded tested in acc. with IEC 60603-7-51 and 60512-27-100, interoperable and backwards compatible with Category 6 and Category 5e.

Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.

Tested in line with R&M's manufacturing control, performing 100% inspection.

Compatible with RJ standard plugs (RJ11, RJ12, RJ45), connection with automatic wire cutting of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 without special tools. X-Separator for individual pair shielding. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with >20 insertion cycles, contact resistance <5 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002. 90° wire orientation without bending cable. With integral cable strain relief, including dust cover. Shield contacting by patented shield lance with integral cablestrain relief, shield material tin-coated bronze, ground contacting through 1 contact finger for flat connectors 4.8 x 0.5 mm.

Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Connectionmodule Cat. 6
AISO, shielded, with EMC cover, dust cover, cable tie and installation instructions.
