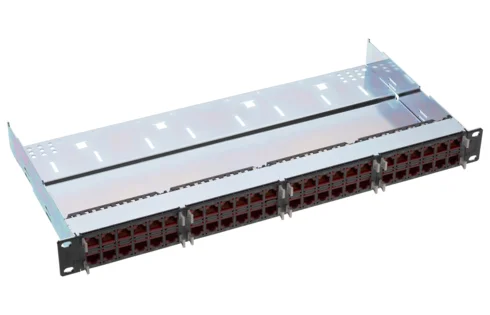

19" 1U HD Patch Panel 48xRJ45/u, Cat. 6A, black, fully populated (R512723)

19" 1U HD Patch Panel 48xRJ45/u, Cat. 6A, black, fully populated (R512723)

19" 1U HD Patch Panel 48xRJ45/u, Cat. 6A, black, fully populated (R512723)

Metal patch panel with integrated cable tieshelf.

Артикул: R512723 Категорія:

Scope of supply

  • 19" 1U HD patch panel

  • 4 12-port/u connection module holders HD

  • 48 Cat. 6
    AISO connection modules, RJ45/u incl. dust covers

  • 19" mounting kit

  • Cable ties

  • 4 velcro strips

  • Installation instructions

Mechanical Data

Dimensions

482.6 mm x 43.2 mm x 225.0 mm / 19 in x 1.701 in x 8.858 in (W x H x D)

Color

steel, blue, chromatized / front, black (RAL 9005)

Material

steel: DC01 (1.0330), 1.5 mm

Technical Data

Number of connectors (A)

48

Category connector (A)

Cat. 6A ISO

Connector type (A)

RJ45

Shielding connector (A)

shielded

PoE

Yes

Amount of height units

1 U

Rack mounting version

patch panel

Assembly

fully populated

Capacity (ports)

48

Standard

IEC 60603-7-41: Electrical Characteristics of the Telecommunication Outlets

ISO/IEC 11801

EN 50173-1

Amount of height units

1

Fastening

19 "

Modular patch panel with integrated cable tie shelf, accommodating up to four connection module holders HD Panel, installation-friendly thanks to snap-and-go technique, optional blind covers. Designed to accommodate the R&M HD security system, with its 2-level protection concept: color coding, locking option or automated infrastructure management systems. Optional labeling strips, fastening kit, integrated port numbering, tool-free locking and unlocking system. Separation elements for protection against Alien NEXT. Sub-rack material sheet steel, colorless chromatized, side panels plastic (PC), halogen-free, color black (RAL 9005).

4 slots populated with

Connection module holders HD, 12-port, unshielded, plastic (PC), fiberglass-reinforced, halogen-free, color black (RAL 9005).

48 ports populated with

RJ45 connection module of Cat. 6
A
ISO, for the setting up of transmission channels of Class E
A
with up to 4 plugged connections acc. to ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1) and Class F on 2 pairs, complies with Cat. 6
A
requirements of the standards ISO/IEC 11801, EN 50173-1 as well the U.S. standard Cat. 6
Aaccording to TIA/EIA 568.2-D, re-embedded tested in acc. with IEC 60603-7-41 and 60512-27-100, interoperable and backwards compatible with Category 6 and Category 5e.

Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.

Tested in line with R&M's manufacturing control, performing 100% inspection.

Compatible with RJ standard plugs (RJ11, RJ12, RJ45), connection with automatic wire cutting of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 without special tools. X-Separator for individual pair shielding. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with >20 insertion cycles, contact resistance <5 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002. 90° wire orientation without bending cable. With integral cable strain relief, including dust cover.

Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Connection module Cat. 6
AISO, unshielded, with dust cover, cable tie and installation instructions.
