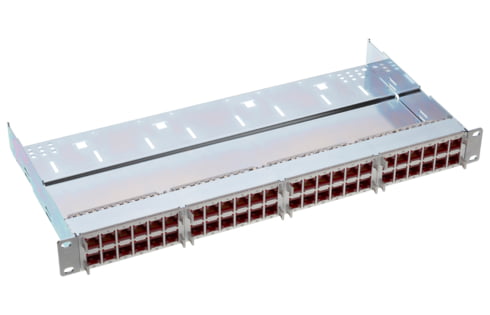

Metal patch panel with integrated cable tieshelf.
19" 1U HD patch panel
4 12-port/u connection module holders HD
48 connection modules, RJ45/u incl. dust covers
19" mounting kit
4 velcro strips
482.6 mm x 43.2 mm x 225.0 mm / 19 in x 1.701 in x 8.858 in (W x H x D)
steel, blue, chromatized / front, gray (NCS 2502-B)
steel: DC01 (1.0330), 1.5 mm
|Number of connectors (A)||
|Category connector (A)||
Cat. 6A ISO
|Connector type (A)||
|Shielding connector (A)||
|Amount of height units||
|Rack mounting version||
IEC 60603-7-41: Electrical Characteristics of the Telecommunication Outlets
|Amount of height units||
Modular patch panel with integrated cable tie shelf, accommodating up to four connection module holders HD Panel, installation-friendly thanks to snap-and-go technique, optional blind covers. Designed to accommodate the R&M HD security system, with its 2-level protection concept: color coding, locking option or automated infrastructure management systems. Optional labeling strips, fastening kit, integrated port numbering, tool-free locking and unlocking system. Separation elements for protection against Alien NEXT. Sub-rack material sheet steel, colorless chromatized, side panels plastic (PC), halogen-free, color medium gray (NCS 2502-B).
4 slots populated with
48 ports populatedwith
RJ45 connection module of Cat. 6
ISO, for the setting up of transmission channels of Class E
with up to 4 plugged connections acc. to ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1) and Class F on 2 pairs, complies with Cat. 6
requirements of the standards ISO/IEC 11801, EN 50173-1 as well the U.S. standard Cat. 6
Aaccording to TIA/EIA 568.2-D, re-embedded tested in acc. with IEC 60603-7-41 and 60512-27-100, interoperable and backwards compatible with Category 6 and Category 5e.
Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.
Tested in line with R&M's manufacturing control, performing 100% inspection.
Compatible with RJ standard plugs (RJ11, RJ12, RJ45), connection with automatic wire cutting of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 without special tools. X-Separator for individual pair shielding. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with >20 insertion cycles, contact resistance <5 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002. 90° wire orientation without bending cable. With integral cable strain relief, including dust cover.
Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Connection module Cat. 6
AISO, unshielded, with dust cover, cable tie and installation instructions.
