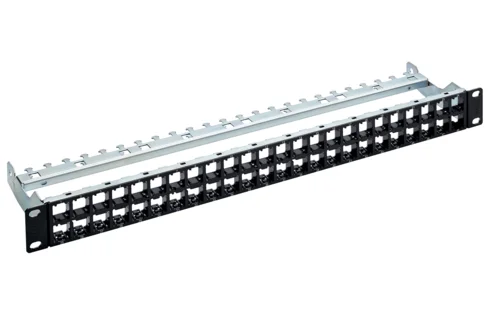

19" 1U Patch Panel HD ELISO 48-Port/s, black, empty (R837065)

Name: 19" 1U Patch Panel HD ELISO 48-Port/s, black, empty (R837065) - ДП "Сінергія"
SKU: R837065

19" 1U Patch Panel HD ELISO 48-Port/s, black, empty (R837065)

Артикул: R837065 Категорія: 1U, 48-Ports, HD ELISO

Scope of supply

1 x Mounting Set-19"-rd-bk
1 x Kit cable ties 24x
1 x Manual

Mechanical Data

Dimensions	483.0 mm x 44.0 mm x 113.0 mm / 19.016 in x 1.732 in x 4.449 in (W x H x D)
Colour Plug-in Module	9005 Jet black
Material	Steel plate, galvanised and blue passivated, PC+ABS, halogen free (UL-HB)

Technical Data

Grounding Module to Panel	Yes
Grounding Panel to Rack	Yes
Grounding Concept	Yes
Dust Protection	Yes, optional
Type of Slot	Assembly
Amount of height units	1 U
Rack mounting version	patch panel
Labeling Field	Yes, optional
Assembly	empty
Front Design	straight
Cable Tray	Yes
Separate Cable Strain Relief	Yes
Plug-in/Plug-out Protection	Yes, optional
Colour Coding	Yes, optional
AIM Possibility	Yes
Capacity (ports)	48
Amount of height units	1
Fastening	19 "

Patch panel with integrated cable tie shelf, accommodating up to 48 modules, installation-friendly thanks to quick release module holders (special), featuring a complete groundingsystem and optional cable guides. Designed to accommodate the R&M HD security system, with its 2-level protection concept: color coding, locking option or automated infrastructure management systems. Optional labeling strips, fastening kit, integrated port numbering. Automatic ground contacting by spring contacts. Sub-rack material sheet steel, blue chromatized, front panel plastic (PC), halogen-free, color 9005 jet black.
