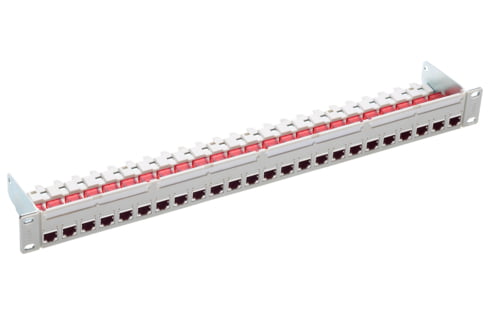

19" 1U 24-port patch panel, empty, shielded
24 Cat. 6
AISO connection modules, RJ45/s incl. EMC covers and dust covers
19" mounting kit
4 labeling strips
482.6 mm x 43.65 mm x 83.4 mm / 19 in x 1.719 in x 3.283 in (W x H x D)
front, medium gray (NCS 2502-B) / steel, blue, chromatized
plastic: PC, fiber-glass reinforced / steel: DC01 (1.0330), 1.5 mm
|Number of connectors (A)||
|Category connector (A)||
Cat. 6A ISO
|Connector type (A)||
|Shielding connector (A)||
|Amount of height units||
|Rack mounting version||
|Holder for connector / module||
Special (without mounting plate)
IEC 60603-7-51: Electrical Characteristics of the Telecommunication Outlets
|Amount of height units||
Modular patch panel with integrated cable tie shelf, integrated grounding system, 19" fastening kit, labeling fields with exchangeable labeling strips. The ports are prepared for a visual color coding system and automated infrastructure management systems. Panel polycarbonate, fiber-glass-reinforced, halogen-free material, UL 94 listed and steel: DC01 (1.0330), 1.5 mm. Color front: medium gray (NCS 2502-B) / steel: blue, chromatized.
24 ports populated with
RJ45 connection module of Cat. 6
ISO, for the setting up of transmission channels of Class E
with up to 4 plugged connections acc. to ISO/IEC 11801, EN 50173-1 (DIN EN 50173-1) and Class F on 2 pairs, complies with Cat. 6
requirements of the standards ISO/IEC 11801, EN 50173-1, as well the U.S. standard Cat. 6
Aaccording to TIA/EIA 568.2-D, re-embedded tested in acc. with IEC 60603-7-51 and 60512-27-100, interoperable and backwards compatible with Category 6 and Category 5e.
Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and100 m.
Tested in line with R&M's manufacturing control, performing 100% inspection.
Compatible with RJ standard plugs (RJ11, RJ12, RJ45), connection with automatic wire cutting of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 without special tools. X-Separator for individual pair shielding. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with >20 insertion cycles, contact resistance <5 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at),4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002. 90° wire orientation without bending cable. With integral cable strain relief, including dust cover. Shield contacting by patented shield lance with integral cable strain relief, shield material tin-coated bronze, ground contacting through 1 contact finger for flat connectors 4.8 x 0.5 mm.
Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Connection module Cat. 6
AISO, shielded, with EMC cover, dust cover, cable tie and installation instructions.
