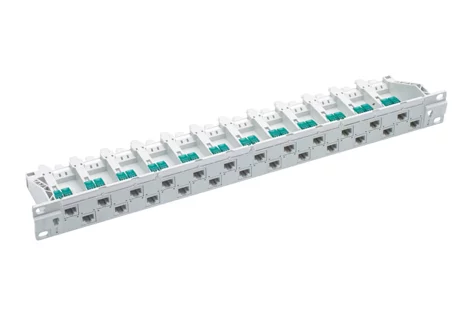

19" 1U PC Patch Panel 24xRJ45/u, Cat. 5e, gray, fully populated (R812471)

19" 1U PC Patch Panel 24xRJ45/u, Cat. 5e, gray, fully populated (R812471)

Артикул: R812471 Категорія:

Scope of supply

  • 19" 1U 24-port patch panel, empty, unshielded

  • 24 Cat. 5e connection modules, RJ45/u incl. dust covers

  • 19" mounting kit

  • 4 labeling strips

  • Cable ties

  • Installation instructions

Mechanical Data

Dimensions

482.6 mm x 43.65 mm x 98.4 mm / 19 in x 1.719 in x 3.874 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, fiber-glass reinforced

Technical Data

Number of connectors (A)

24

Category connector (A)

Cat. 5e

Connector type (A)

RJ45

Shielding connector (A)

unshielded

Protection class IP (A)

IP 20

PoE

Yes

Amount of height units

1 U

Rack mounting version

sub-rack

Assembly

fully populated

Holder for connector / module

Special (without mounting plate)

Capacity (ports)

24

Standard

EN 50173-1

IEC 60603-7: Electrical Characteristics of the Telecommunication Outlets

ISO/IEC 11801

Amount of height units

1

Fastening

19 "

Modular patch panel with integrated cable tie shelf, 19" fastening kit, labeling fields with exchangeable labeling strips, prepared for optional two patch cord rings. The ports are prepared for a visual color coding system. Panel polycarbonate, fiber-glass-reinforced, halogen-free material, UL 94 listed. Colormedium gray, NCS 2502-B.

24 ports populated with

RJ45 connection module of Category 5, for the setting up of transmission channels of class D with up to 4 plugged connections, complies with Category 5 requirements of the standards ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1) as well as TIA/EIA 568.2-D, de-embedded tested in acc. with IEC 60603-7-2, interoperable and backwards compatible with Category 5e (2000) and Category 5 (1995).

Suitable for 1GBASE-T applications in acc. withIEEE 802.3™ Section Three over 100 m.

Tested in line with R&M's manufacturing control.

Compatible with RJ standard plugs (RJ11, RJ12, RJ45), PCB-free and tool-free Easy-Lock connection of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with single-wire strain relief and >20 insertion cycles, contact resistance <100 mOhm, dielectric strength >1000 Veff. PoE and PoE+ compatible according to IEC 60512-99-001. With integral cablestrain relief, including dust cover.

Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Connection module Cat. 5e, with EMC cover, dust cover, cable tie and installation instructions.
