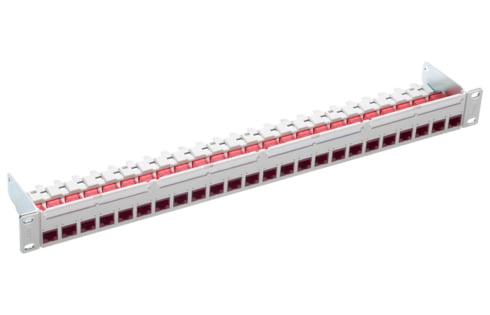

19" 1U PC Patch Panel 24xRJ45/u, Cat. 6A, gray, fully populated (R813494)

19" 1U PC Patch Panel 24xRJ45/u, Cat. 6A, gray, fully populated (R813494)

Артикул: R813494 Категорія:

Scope of supply

  • 19" 1U 24-port patch panel, empty, unshielded

  • 24 Cat. 6
    AISO connection modules, RJ45/u incl. dust covers

  • 19" mounting kit

  • 4 labeling strips

  • Cable ties

  • Installation instructions

Mechanical Data

Dimensions

482.6 mm x 43.65 mm x 83.4 mm / 19 in x 1.719 in x 3.283 in (W x H x D)

Color

front, medium gray (NCS 2502-B) / steel, blue, chromatized

Material

plastic: PC, fiber-glass reinforced / steel: DC01 (1.0330), 1.5 mm

Technical Data

Number of connectors (A)

24

Category connector (A)

Cat. 6A ISO

Connector type (A)

RJ45

Shielding connector (A)

unshielded

PoE

Yes

Amount of height units

1 U

Rack mounting version

patch panel

Assembly

fully populated

Holder for connector / module

Special (without mounting plate)

Capacity (ports)

24

Standard

IEC 60603-7-41: Electrical Characteristics of the Telecommunication Outlets

ISO/IEC 11801

EN 50173-1

Amount of height units

1

Fastening

19 "

Modular patch panel with integrated cable tie shelf, 19" fastening kit, labeling fields with exchangeable labeling strips. The ports are prepared for a visual color coding system and automated infrastructure management systems. Panel polycarbonate, fiber-glass-reinforced, halogen-free material, UL 94 listed and steel: DC01 (1.0330), 1.5 mm. Color front: medium gray (NCS 2502-B) / steel: blue, chromatized.

24 ports populated with

RJ45 connection module of Cat. 6
A
ISO, for the setting up of transmission channels of Class E
A
with up to 4 plugged connections acc. to ISO/IEC 11801, EN 50173-1,(DIN EN 50173-1) and Class F on 2 pairs, complies with Cat. 6
A
requirements of the standards ISO/IEC 11801, EN 50173-1 as well the U.S. standard Cat. 6
Aaccording to TIA/EIA 568.2-D, re-embedded tested inacc. with IEC 60603-7-41 and 60512-27-100, interoperable and backwards compatible with Category 6 and Category 5e.

Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.

Tested in line with R&M's manufacturing control, performing 100% inspection.

Compatible with RJ standard plugs (RJ11, RJ12, RJ45), connection with automatic wire cutting of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG26/7 – AWG 22/7 without special tools. X-Separator for individual pair shielding. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with >20 insertion cycles, contact resistance <5 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002. 90° wire orientation without bending cable. With integral cable strain relief, including dust cover.

Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Connection module Cat. 6
AISO, unshielded, with dust cover, cable tie and installation instructions.
