Very good uniform distribution of coupled-in power. Low insertion loss and PDL. High directivity and return loss. Bidirectional. Wide range of wavelengths.

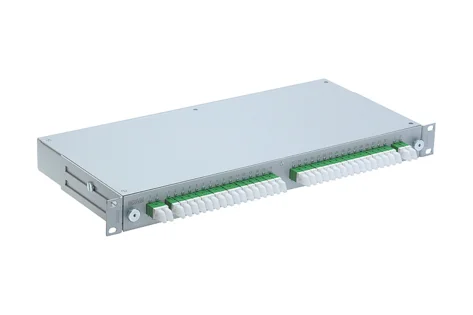

Fully assembled, ready to plug rack, including splitters and adapters
Test report (100% mounted tested)
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Protection class IP |
IP 20 |
| Protection class IP (A) |
IP 20 |
| Number of connectors (A) | 34 |
| Assembly |
fully populated |
| Fastening | 19 " |
| Rack mounting version |
slide-in unit |
| Amount of height units | 1 U |
| Connector type (A) |
SC |
| Polishing plug (A) |
APC 8° |
| Attenuation grade IL (A) | C |
| Return loss grade RL (A) | 1 |
| Connector color (A) |
green |
| Sleeve material |
ceramic |
| Adapter fastening method |
end cap |
| Fiber type |
singlemode (SM) |
| Splitter ratio | 2 times 1 to 16 |
| Fiber class |
G.652.D + G.657.A1 (OS1, OS2) |
| Conductor type |
semi-tight buffer, dry |
| Fiber diameter |
E9 / 125 µm |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Dimensions | 43.6 mm x 482.6 mm x 200.0 mm / 1.717 in x 19 in x 7.874 in (W x H x D) |
| Color Code NCS |
S 2502-B |
| Material |
steel: DC04 (1.0338), 1.5 mm, powder-coated |
