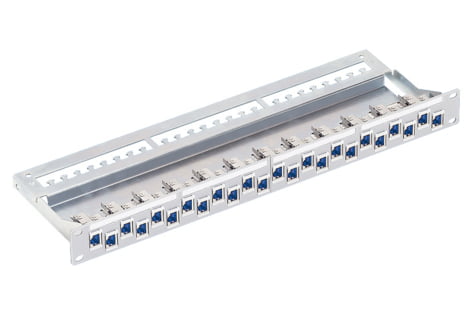

19" 1U 24-port metal patchpanel, empty, integrated cable tie shelf
24 Cat. 6 connection modules, RJ45/s incl. EMC covers and dust covers
19" mounting kit
4 labeling strips
482.6 mm x 43.2 mm x 151.5 mm / 19 in x 1.701 in x 5.965 in (W x H x D)
steel, blue, chromatized / front, gray (NCS 2502-B)
steel: DC01 (1.0330), 1.5 mm
|Number of connectors (A)||
|Category connector (A)||
|Connector type (A)||
|Shielding connector (A)||
|Amount of height units||
|Rack mounting version||
|Holder for connector / module||
IEC 60603-7: Electrical Characteristics of the Telecommunication Outlets
|Amount of height units||
Patch panel with integrated cable tie shelf, optional direct grounding, 19" fastening kit, labeling field, accepting the snap-in type color coding clips in 8 colors.
Material: sub-rack made of sheet steel (DC01A) 1.5 mm, color blue chromatized, screen made of plastic (ABS), halogen-free, colormedium gray (NCS 2502-B).
24 ports populated with
RJ45 connection module of Category 6, forthe establishing of transmission channels of class E and class E
Awith up to 4 plugged connections, and class F on 2 pairs, complies with Category 6 requirements of the standards ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1) as well as TIA/EIA 568.2-D, de-embedded tested in acc. with IEC 60603-7-5, interoperable and backwards compatible with Category 5e and Category 5.
Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.
Tested in line with R&M's manufacturing control, performing 100% inspection.
Compatible with RJ standard plugs (RJ11, RJ12, RJ45), PCB-free and tool-free Easy-Lock connection of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with single-wire strain relief and >20 insertion cycles, contact resistance <50 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002. Shield contacting by patented shield lance with integral cable strain relief, shield material tin-coated bronze, ground contacting through 2 contact fingers for flat connectors 4.8 x 0.5 mm.
Mounting dimensions 14.9 x 19.5 mm,max. material thickness 1.6 mm.
Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Connection module Cat. 6, shielded, with EMC cover, dust cover, snap-in frame (gray), cable tie and installation instructions.
