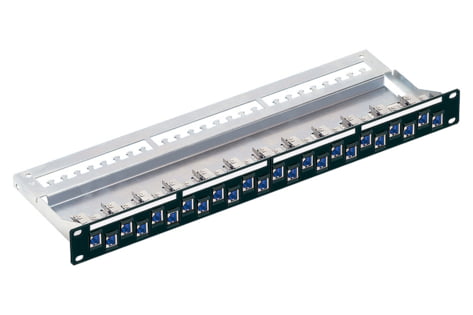

19" 1U ST Patch Panel 24xRJ45/s, Real10 Cat. 6, black, fully populated (R514695)

19" 1U ST Patch Panel 24xRJ45/s, Real10 Cat. 6, black, fully populated (R514695)

19" 1U ST Patch Panel 24xRJ45/s, Real10 Cat. 6, black, fully populated (R514695)

Артикул: R514695 Категорія:

Scope of supply

  • 19" 1U 24-port metal patchpanel, empty, integrated cable tie shelf

  • 24 Cat. 6 connection modules, RJ45/s incl. EMC covers and dust covers

  • 19" mounting kit

  • 4 labeling strips

  • Cable ties

  • Installation instructions

Mechanical Data

Dimensions

482.6 mm x 43.2 mm x 151.5 mm / 19 in x 1.701 in x 5.965 in (W x H x D)

Color

steel, blue, chromatized / front, black (RAL 9005)

Material

steel: DC01 (1.0330), 1.5 mm

Technical Data

Number of connectors (A)

24

Category connector (A)

Cat. 6

Connector type (A)

RJ45

Shielding connector (A)

shielded

PoE

Yes

Amount of height units

1 U

Rack mounting version

patch panel

Assembly

fully populated

Holder for connector / module

Snap-in frame

Capacity (ports)

24

Standard

EN 50173-1

IEC 60603-7: Electrical Characteristics of the Telecommunication Outlets

ISO/IEC 11801

Amount of height units

1

Fastening

19 "

Patch panel with integrated cable tie shelf, optional direct grounding, 19" fastening kit, labeling field, accepting the snap-in type color coding clips in 8 colors.

Material: sub-rack made of sheet steel (DC01A) 1.5 mm, color blue chromatized, screen made of plastic (ABS), halogen-free, colorblack (RAL 9005).

24 ports populated with

RJ45 connection module of Category 6, for the establishing of transmission channels of class E and class E
Awith up to 4 plugged connections, and class F on 2pairs, complies with Category 6 requirements of the standards ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1) as well as TIA/EIA 568.2-D, de-embedded tested in acc. with IEC 60603-7-5, interoperable and backwards compatible with Category 5e and Category 5.

Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.

Tested in line with R&M's manufacturing control, performing 100% inspection.

Compatible with RJ standard plugs (RJ11, RJ12, RJ45), PCB-free and tool-free Easy-Lock connection of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexiblecables AWG 26/7 – AWG 22/7. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with single-wire strain relief and >20 insertion cycles, contact resistance <50 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002. Shield contacting by patented shield lance with integral cable strain relief, shield material tin-coated bronze, groundcontacting through 2 contact fingers for flat connectors 4.8 x 0.5 mm.

Mounting dimensions 14.9 x 19.5 mm, max. material thickness 1.6 mm.

Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Connection module Cat. 6, shielded, with EMC cover, dust cover, snap-in frame (black), cable tie and installation instructions.
