19" 1U UniRack 12xE-2000™ OM4, PC, ceramic, Bm/3 (R817604)

Артикул: R817604 Категорія: Misc

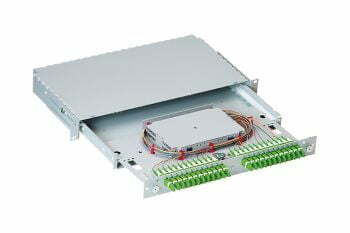

19" 1U slide-in unit, splice tray plate with 2 splice trays radius 40 mm, fastening material, labeling strips and installation manual
Front panel equipped with adapters and pigtails

Mechanical Data

Technical Data

Conductor type FO	semi-tight buffer, dry
Fiber class	OM4
Fiber diameter	n.a.
Number of connectors (A)	12
Connector type (A)	E-2000™
Connector color (A)	beige
Color (A2)	turquoise/aqua
Lever- / frame-coding (A)	Color
Polishing plug (A)	PC
Protection class IP (A)	IP 20
Return loss grade RL (A)	3
Attenuation grade IL (A)	Bm
Amount of height units	1 U
Rack mounting version	patch panel
Assembly	partly populated
Capacity (ports)	24
Sleeve material	ceramic
Version	splice
Standard	IEC 60297-3: 19-inch (482.6 mm) rack UL Listed Adapter and connector in acc. with IEC 61754-15 and EN 186270 Pigtails in acc. with color code DIN VDE 0888
Amount of height units	1
Fastening	19 "
