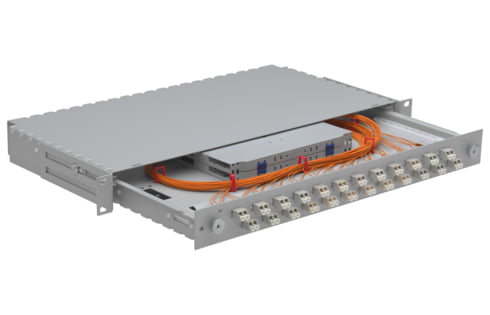

19" 1U UniRack 24xLC-Duplex G.652.D, APC, ceramic, C/1 (R505558)

19" 1U UniRack 24xLC-Duplex G.652.D, APC, ceramic, C/1 (R505558)

Front panel with staggered arrangement of adapters.

Артикул: R505558 Категорія:

Scope of supply

  • 19" 1U slide-in unit, splice tray plate with 2 splice trays radius 40 mm, fastening material, labeling strips and installation manual

  • Front panel equipped with adapters and pigtails

Mechanical Data

Dimensions

43.6 mm x 482.6 mm x 230.0 mm / 1.717 in x 19 in x 9.055 in (W x H x D)

Color Code NCS

S 2502-B

Material

steel: DC04 (1.0338), 1.5 mm, powder-coated

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

24

Connector type (A)

LC-Duplex

Connector color (A)

green

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Return loss grade RL (A)

1

Attenuation grade IL (A)

C

Amount of height units

1 U

Rack mounting version

patch panel

Adapter fastening method

end cap

Assembly

fully populated

Capacity (ports)

24

Sleeve material

ceramic

Version

splice

Standard

IEC 60297-3: 19-inch (482.6 mm) rack

Adapter and connector in acc. with IEC 61754-20

UL Listed

Pigtails in acc. with color code DIN VDE 0888

Amount of height units

1

Fastening

19 "

Mounted with screws 24 x

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 500

  • Pull-out force: min. 70 N

  • Assembled with 48 x

  • Insertion loss (IL) Grade C for 97% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.25 dB

  • Return loss (RL) Grade 1: ≥ 60 dB (typical ≥ 80 dB)

  • Mating cycles: delta IL < 0.2 dB after 500 mating cycles

  • Pull-out force fiber pigtail: ≥ 5 N

  • Optional:

    Visual coding, mechanical coding and lock protection.
