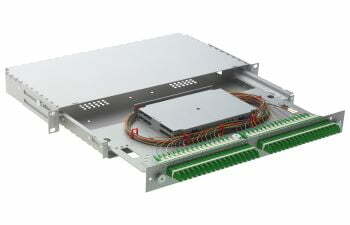

19" 1U slide-in unit, splice tray plate with 2 splice trays radius 40 mm, fastening material, labeling strips and installation manual
Front panel equipped with adapters and pigtails
E-2000™ adapter (LSH) multimode, simplex adapter in acc. with IEC 61754-15 and EN 186270. Adapter body plus flange and two integral hexagonal nuts M2. Zirconia (ceramic) alignment sleeve, beige housing (multimode), orange coding frame (OM2), material PBT / UL94 V-0, integral self-closing plastic laser protection flaps, semi-transparent plastic dust cover, allowing optical testing with test lasers without removing the cover. Adapter qualified in accordance with IEC 61753-1 for category U (uncontrolled environment).
Optical specifications:
Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4
Mechanical specifications:
Mating cycles: min. 1000
Pull-out force: min. 70 N
Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4
Mating cycles: min. 1000
Pull-out force: min. 70 N
Assembled with 36 x
Pigtail with semi-tightbuffer PA/PBT, Ø 0.9 mm, orange, multimode G50 50/125 µm (OM2), length 2.5 m. Fitted with E-2000™ (LSH) connector in accordance with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors qualified in acc. with IEC 61753-1 for category U (uncontrolled environment) and category E (extreme environment). Beige connector housing (multimode) and orange lever, material PBT / UL 94 V-0, black strain relief, material TPE / UL 94 V-0 and silver-colored metal dust shutter.
Optical specifications (random mated):
Performance:
Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB /typical ≤ 0.15 dB
Return loss (RL) Grade 3: ≥ 35 dB
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles
Pull-out force fiber pigtail: ≥ 5 N
Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.15 dB
Return loss (RL) Grade 3: ≥ 35 dB
Mating cycles: delta IL < 0.2 dB after 500 mating cycles
Pull-out force fiber pigtail: ≥ 5 N
Optional:
Visual coding, mechanical coding and lock protection.
