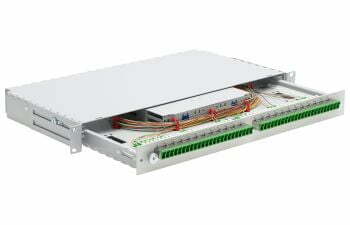

19" 1U UniRack 6xE-2000™-Compact G.652.D, PC, ceramic, C/2 (R819599)

19" 1U UniRack 6xE-2000™-Compact G.652.D, PC, ceramic, C/2 (R819599)

Артикул: R819599 Категорія:

Scope of supply

  • 19" 1U slide-in unit, splice tray plate with 2 splice trays radius 40 mm, fastening material, labeling strips and installation manual

  • Front panel equipped with adapters and pigtails

Mechanical Data

Dimensions

43.6 mm x 482.6 mm x 230.0 mm / 1.717 in x 19 in x 9.055 in (W x H x D)

Color Code NCS

S 2502-B

Material

steel: DC04 (1.0338), 1.5 mm, powder-coated

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

6

Connector type (A)

E-2000™-Compact

Connector color (A)

blue

Color (A2)

blue

Lever- / frame-coding (A)

Color

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Return loss grade RL (A)

2

Attenuation grade IL (A)

C

Amount of height units

1 U

Rack mounting version

patch panel

Adapter fastening method

end cap

Capacity (ports)

24

Sleeve material

ceramic

Version

splice

Standard

IEC 60297-3: 19-inch (482.6 mm) rack

UL Listed

Adapter and connector in acc. with IEC 61754-15 and EN 186270

Pigtails in acc. with color code DIN VDE 0888

Amount of height units

1

Fastening

19 "

Mounted with screws 6 x

E-2000™-Compact adapter (LSHRJ) singlemode, duplex adapter in acc. with IEC 61754-15:2009 and EN 186270. Adapter body plus flange and integral quick-mounting clip and M2 thread. Zirconia (ceramic) alignment sleeve, metallic housing, material X10CrNi18-8, blue inner housing (singlemode PC), blue coding clips, material PBT / UL 94 V-0, integral self-closing metal laser protection flaps, semi-transparent plastic dust cover, allowing optical testing with test lasers without removing the cover. Adapter qualified in accordance with IEC 61753-1 for category U (uncontrolled environment).


Optical specifications:

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mechanical specifications:

  • Mating cycles: min. 1000

  • Pull-out force: min. 70 N

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 1000

  • Pull-out force: min. 70 N

  • Assembled with 12 x

    Pigtail with semi-tight buffer PA/PBT, Ø 0.9 mm, color in acc. with color code DIN/VDE 0888, singlemode G652.D 9/125 µm (OS1, OS2), length 2.5 m. Fitted with E-2000™ (LSH) connector in accordance with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors tuned in accordance with IEC 61755-3-1 and qualified in acc. with IEC 61753-1 for category U (uncontrolled environment) and category E (extreme environment). Blue connector housing (singlemode) and blue lever, material PBT / UL 94 V-0, blue strain relief, material TPE / UL 94 V-0 and silver-colored metal dust shutter.


    Optical specifications (random mated):


    Performance acc. to IEC 61753-1 (Table A.12):

  • Insertion loss (IL) Grade C for 97% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.25 dB

  • Return loss (RL) Grade 2: ≥ 45 dB (typical ≥ 55 dB)

  • Mechanical specifications:

  • Mating cycles: delta IL < 0.2 dB after 1000 mating cycles

  • Pull-out force fiber pigtail: ≥ 5 N

  • Insertion loss (IL) Grade C for 97%of the tested specimen: ≤ 0.50 dB / typical ≤ 0.25 dB

  • Return loss (RL) Grade 2: ≥45 dB (typical ≥ 55 dB)

  • Mating cycles: delta IL < 0.2 dB after 1000 mating cycles

  • Pull-out force fiber pigtail: ≥ 5 N

  • Optional:

    Visual coding, mechanical coding and lock protection.
