19" 1U UniRack2 12xLC-Duplex G.652.D, PC, ceramic, C/2 (R819607)

Артикул: R819607 Категорія: Misc

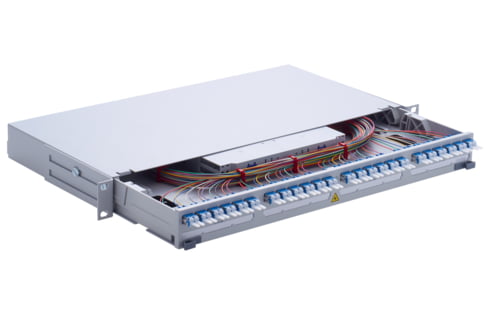

19" 1U slide-in unit, splice tray plate with 2 splice trays radius 40 mm, fastening material, labeling strips and installation manual
Front panel equipped with adapters and pigtails

Mechanical Data

Technical Data

Conductor type FO	semi-tight buffer, dry
Fiber type	Singlemode (SM)
Fiber class	G.657.A1 (covers G.652.D, OS1, OS2)
Fiber diameter	n.a.
Number of connectors (A)	12
Connector type (A)	LC-Duplex
Connector color (A)	blue
Polishing plug (A)	PC
Protection class IP (A)	IP 20
Return loss grade RL (A)	2
Attenuation grade IL (A)	C
Amount of height units	1 U
Rack mounting version	patch panel
Adapter fastening method	end cap snap-in
Assembly	partly populated
Capacity (ports)	24
Sleeve material	ceramic
Version	splice
Standard	Adapter and connector in acc. with IEC 61754-20 IEC 60297-3: 19-inch (482.6 mm) rack Pigtails in acc. with color code DIN VDE 0888
Amount of height units	1
Fastening	19 "
