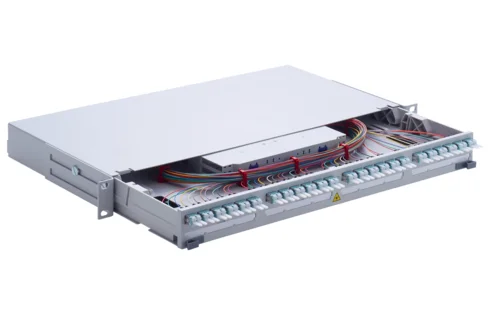

19" 1U UniRack2 12xLC-Duplex OM3, PC, ceramic, Bm/3 (R816225)

19" 1U UniRack2 12xLC-Duplex OM3, PC, ceramic, Bm/3 (R816225)

19" 1U UniRack2 12xLC-Duplex OM3, PC, ceramic, Bm/3 (R816225)

Артикул: R816225 Категорія:

Scope of supply

  • 19" 1U slide-in unit, splice tray plate with 2 splice trays radius 40 mm, fastening material, labeling strips and installation manual

  • Front panel equipped with adapters and pigtails

Mechanical Data

Dimensions

43.6 mm x 482.6 mm x 225.0 mm / 1.717 in x 19 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

steel: DC01 (1.0330), 1.0 mm

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Multimode (MM)

Fiber class

OM3

Fiber diameter

G50 / 125 µm

Number of connectors (A)

12

Connector type (A)

LC-Duplex

Connector color (A)

turquoise/aqua

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Return loss grade RL (A)

3

Attenuation grade IL (A)

Bm

Amount of height units

1 U

Rack mounting version

patch panel

Adapter fastening method

end cap snap-in

Assembly

partly populated

Capacity (ports)

24

Sleeve material

ceramic

Version

splice

Standard

Adapter and connector in acc. with IEC 61754-20

IEC 60297-3: 19-inch (482.6 mm) rack

Pigtails in acc. with color code DIN VDE 0888

Amount of height units

1

Fastening

19 "

  • Dimensions: 43.6 x 482.6 x 225mm

  • Material: box, powder-coated sheet steel / front panel, plastic PC, fiber-glass reinforced

  • Color: medium gray (NCS 2502-B, approximating RAL 7035)

  • Assembled with 12 x

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 500

  • Pull-out force: min. 70 N

  • Assembled with 24 x

  • Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.15 dB

  • Return loss (RL) Grade 3: ≥ 35 dB

  • Mating cycles: delta IL < 0.2 dB after 500 mating cycles

  • Pull-out force fiber pigtail: ≥ 5 N
