19" 1U UniRack2 24xE-2000™-Compact G.652.D, APC, ceramic, C/1 (R816046)

19" 1U UniRack2 24xE-2000™-Compact G.652.D, APC, ceramic, C/1 (R816046)

19" 1U UniRack2 24xE-2000™-Compact G.652.D, APC, ceramic, C/1 (R816046)

Артикул: R816046 Категорія:

Scope of supply

  • 19" 1U slide-in unit, splice tray plate with 2 splice trays radius 40 mm, fastening material, labeling strips and installation manual

  • Front panel equipped with adapters and pigtails

Mechanical Data


43.6 mm x 482.6 mm x 225.0 mm / 1.717 in x 19 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B


steel: DC01 (1.0330), 1.0 mm

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter


Number of connectors (A)


Connector type (A)


Connector color (A)


Color (A2)


Lever- / frame-coding (A)


Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Return loss grade RL (A)


Attenuation grade IL (A)


Amount of height units

1 U

Rack mounting version

patch panel

Adapter fastening method

end cap snap-in


fully populated

Capacity (ports)


Sleeve material





Adapter and connector in acc. with IEC 61754-15 and EN 186270

IEC 60297-3: 19-inch (482.6 mm) rack

Pigtails in acc. with color code DIN VDE 0888

Amount of height units



19 "

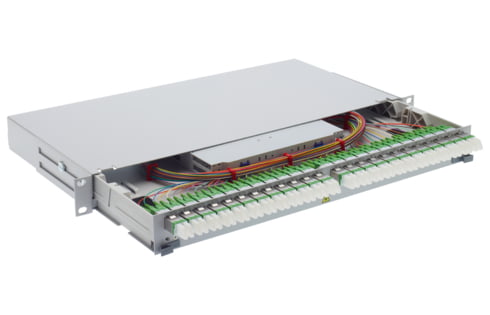

Splice and patch box, mounting depth 225 mm, continuously depth-adjustable up to 55 mm; rear cable feed, cable entry possible from three different angles. The box has two levels, the lower level serves as storage for spare loose tubes, tray fixation in the side structure is ensured; the upper level serves as storage for spare pigtails (1.3 m of fiber stored in the splice tray). Guaranteed bending radius = 40 mm, fitted ready for splicing with pigtails and adapters, inserted and tested, two or less splice trays with radius 40 mm, box continuously extendable up to 210 mm, at full extension it can be inclined 10° forwards. Optimum access to loose tubes, adapters and pigtails, the tray can be fully detached from the box by release lever. Includes indelible laser trademark, fastening material, labeling strips and installation instructions.

Fitted with 24 x E-2000™-Compact adapters (LSHRJ) singlemode in acc. with IEC 61754-15:2009 and EN 186270. Flangeless body and integral quick-mounting clip for screwless mounting. Zirconia (ceramic) alignment sleeve, metallic housing, material X10CrNi18-8, green inner housing (singlemode APC), green coding clips, material PBT / UL 94 V-0, integral self-closing metal laser protection flaps, semi-transparent plastic dust covers, allowing optical testing with test lasers without removing the covers. Adapter qualifiedin accordance with IEC 61753-1 for category U (uncontrolled environment).
Optical specifications:
Delta insertion loss: = 0.2 dB, testing method acc. to IEC 61300-3-4
Mechanical specifications:
Mating cycles: min. 1000
Pull-out force: min. 70 N

and 48 x pigtailswith semi-tight buffer PA/PBT, Ø 0.9 mm, color in acc. with color code DIN/VDE 0888, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2), length 2.5 m. Fitted with one E-2000™ (LSH) connector in accordance with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connectors tuned in accordance with IEC 61755-3-2 and qualified in acc. with IEC 61753-1 for category U (uncontrolled environment) and category E (extreme environment). Green connector housing (singlemode) and green lever, material PBT / UL 94 V-0, green strain relief, material TPE / UL 94 V-0 and silver-colored metal dust shutter.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB
Return loss (RL) Grade 1: = 60 dB (typical = 80 dB)
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 1000 mating cycles Pull-out force fiber pigtail: = 5 NFeatures: Dimensions: 43.6 (1U) x 482.6 (19") x 225 mm (H x W x D) Material: front panel, splice and patch box made of powder-coated sheet steel, medium gray (NCS 2502-B, approximating RAL 7035)Optionally: Various cable entries Various front cable managers
