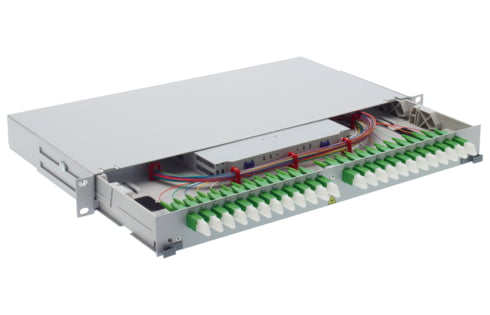

19" 1U UniRack2 24xE-2000™ G.652.D, PC, ceramic, C/2 (R819329)

19" 1U UniRack2 24xE-2000™ G.652.D, PC, ceramic, C/2 (R819329)

Артикул: R819329 Категорія:

Scope of supply

  • 19" 1U slide-in unit, splice tray plate with 2 splice trays radius 40 mm, fastening material, labeling strips and installation manual

  • Front panel equipped with adapters and pigtails

Mechanical Data

Dimensions

43.6 mm x 482.6 mm x 225.0 mm / 1.717 in x 19 in x 8.858 in (W x H x D)

Color Code NCS

S 2502-B

Material

steel: DC01 (1.0330), 1.0 mm

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

24

Connector type (A)

E-2000™

Connector color (A)

blue

Color (A2)

blue

Lever- / frame-coding (A)

Color

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Return loss grade RL (A)

2

Attenuation grade IL (A)

C

Amount of height units

1 U

Rack mounting version

patch panel

Adapter fastening method

end cap

Assembly

fully populated

Capacity (ports)

24

Sleeve material

ceramic

Version

splice

Standard

Adapter and connector in acc. with IEC 61754-15 and EN 186270

IEC 60297-3: 19-inch (482.6 mm) rack

Pigtails in acc. with color code DIN VDE 0888

Amount of height units

1

Fastening

19 "

Splice and patch box, mountingdepth 225 mm, continuously depth-adjustable up to 55 mm; rear cable feed, cable entry possible from three different angles. The boxhas two levels, the lower level serves as storage for spare loose tubes, tray fixation in the side structure is ensured; the upper level serves as storage for spare pigtails (1.3 m of fiber stored in the splice tray). Guaranteed bending radius ≥ 40 mm, fitted ready for splicing with pigtails and adapters, inserted and tested, two splice trays with radius 40 mm, box continuously extendable up to 210 mm, at full extension it can be inclined 10° forwards. Optimum access to loose tubes, adapters and pigtails, the tray can be fully detached from the box by release lever. Includes indelible laser trademark, fastening material, labeling strips and installation instructions.


Features:

  • Dimensions: 43.6 x 482.6 x 225 mm

  • Material: box, powder-coated sheet steel / front panel, plastic PC, fiber-glass reinforced

  • Color: medium gray (NCS 2502-B, approximating RAL 7035)

  • Dimensions: 43.6 x 482.6 x 225 mm

  • Material: box, powder-coated sheet steel / front panel, plastic PC, fiber-glass reinforced

  • Color: medium gray (NCS 2502-B, approximating RAL 7035)

  • Mounted with screws 24 x

    E-2000™ adapter (LSH) singlemode, simplex adapter in acc. with IEC 61754-15 and EN 186270. Adapter body plus flange and two integral hexagonal nuts M2. Zirconia (ceramic) alignment sleeve, blue housing (singlemode), blue coding frame, material PBT / UL 94 V-0, integral self-closing plastic laser protection flaps, semi-transparent plastic dust cover, allowing optical testing with test lasers without removing the cover. The adapter is qualified in accordance with IEC 61753-1 for category U (uncontrolled environment).


    Optical specifications:

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mechanical specifications:

  • Mating cycles: min. 1000

  • Pull-out force: min. 70 N

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 1000

  • Pull-out force: min. 70 N

  • Assembled with 24 x

  • Insertion loss (IL) Grade C for 97% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.25 dB

  • Return loss (RL) Grade 2: ≥ 45 dB (typical ≥ 55 dB)

  • Mating cycles: delta IL < 0.2 dB after 1000 mating cycles

  • Pull-out force fiber pigtail: ≥ 5 N
