19" 1U UniRack2 24xFC G.652.D, PC, ceramic, C/2 (R816049)

Артикул: R816049 Категорія: Misc

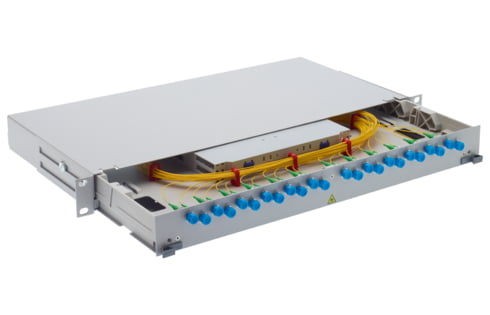

19" 1U slide-in unit, splice tray plate with 2 splice trays radius 40 mm, fastening material, labeling strips and installation manual
Front panel equipped with adapters and pigtails

Mechanical Data

Technical Data

Conductor type FO	semi-tight buffer, dry
Fiber type	Singlemode (SM)
Fiber class	G.657.A1 (covers G.652.D, OS1, OS2)
Fiber diameter	n.a.
Number of connectors (A)	24
Connector type (A)	FC
Connector color (A)	metallic
Polishing plug (A)	PC
Protection class IP (A)	IP 20
Return loss grade RL (A)	2
Attenuation grade IL (A)	C
Amount of height units	1 U
Rack mounting version	patch panel
Adapter fastening method	screw
Assembly	fully populated
Capacity (ports)	24
Sleeve material	ceramic
Version	splice
Standard	IEC 60297-3: 19-inch (482.6 mm) rack Adapter and connector in acc. with IEC 61754-13
Amount of height units	1
Fastening	19 "
