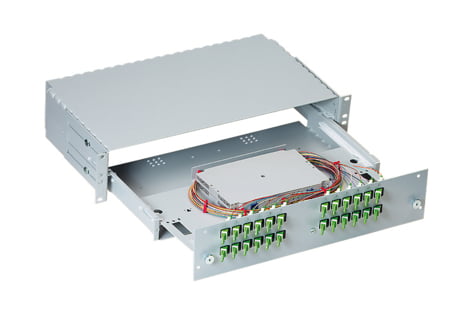

19" 2U UniRack 24xE-2000™ G.652.D, APC, ceramic, C/1, 45° left (R308474)

19" 2U UniRack 24xE-2000™ G.652.D, APC, ceramic, C/1, 45° left (R308474)

19" 2U UniRack 24xE-2000™ G.652.D, APC, ceramic, C/1, 45° left (R308474)

Артикул: R308474 Категорія:

Scope of supply

  • 19" 2U slide-in unit, splice tray plate with 2 splice trays radius 40 mm, fastening material, labeling strips and installation manual

  • Front panel equipped with 45° adapter entry, (R308474 = left) adapters and pigtails

Mechanical Data

Dimensions

88.0 mm x 482.6 mm x 230.0 mm / 3.465 in x 19 in x 9.055 in (W x H x D)

Color Code NCS

S 2502-B

Material

steel: DC04 (1.0338), 1.5 mm, powder-coated

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

24

Connector type (A)

E-2000™

Connector color (A)

green

Color (A2)

white

Lever- / frame-coding (A)

Color

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Return loss grade RL (A)

1

Attenuation grade IL (A)

C

Amount of height units

2 U

Rack mounting version

patch panel

Adapter fastening method

end cap snap-in

Assembly

fully populated

Capacity (ports)

24

Sleeve material

ceramic

Version

splice

Standard

UL Listed

IEC 60297-3: 19-inch (482.6 mm) rack

Adapter and connector in acc. with IEC 61754-15 and EN 186270

Pigtails in acc. with color code DIN VDE 0888

Amount of height units

2

Fastening

19 "
