19" 3U Global patch panel/s incl. cable tie shelf
12 connection module holders Global/s
3 Global blind covers
Grounding system
48 Cat. 6A ISO connection modules, RJ45/s incl. EMC covers and dust covers
Labeling strips
19" mounting kit
Cable ties
Installation instructions
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm |
IEC 60603-7-51: Electrical Characteristics of the Telecommunication Outlets ISO/IEC 11801 EN 50173-1 |
| Protection class IP |
IP 20 |
| PoE | Yes |
| Shielding connector (A) |
shielded |
| Connector type (A) |
RJ45 |
| Category connector (A) |
Cat. 6A ISO |
| Number of connectors (A) | 48 |
| Holder for connector / module |
Module holder |
| Assembly |
partly populated |
| Fastening | 19 " |
| Rack mounting version |
patch panel |
| Capacity (ports) | 60 |
| Amount of height units | 3 U |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Dimensions | 132.5 mm x 482.6 mm x 221.0 mm / 5.217 in x 19 in x 8.701 in (W x H x D) |
| Color Code NCS |
S 2502-B |
| Material |
steel: DC01 (1.0330), 1.5 mm / aluminum / plastic: PA66, PC, fiber-glass reinforced, halogen-free |

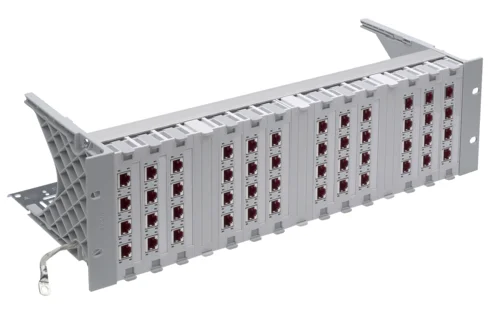

Modular patch panel accommodating up to fifteen connection module holders Global/s, installation-friendly thanks to snap-and-go technique, featuring a complete grounding system and Global blind cover. Designed to accommodate the R&M security and the R&M environment system, with its 3-level protection concept: color coding, mechanical coding, locking option. Exchangeable labeling strips, integral cable tie shelf, fastening kit, labeling fields, tool-free locking and unlocking system. Automatic ground contacting by spring contacts. Profile aluminum, colorless chromatized; cable tie shelf sheet steel (DC01A) 1.5 mm, color blue passivated; side panel plastic (PA), fiberglass-reinforced, halogen-free, color medium gray (NCS 2502-B).
12 slots populated with
Connection module holder Global, shielded, plastic (PC), halogen-free, color light gray (NCS 1005-R80B).
3 slots populated with
Blind cover Global, plastic (PC), to cover unused ports, halogen-free materials, color light gray (NCS 1005-R80B).
48 ports populated with
RJ45 connection module of Cat. 6A ISO, for the setting up of transmission channels of Class EA with up to 4 plugged connections acc. to ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1) and Class F on 2 pairs, complies with Cat. 6A requirements of the standards ISO/IEC 11801, EN 50173-1, as well the U.S. standard Cat. 6A according to TIA/EIA 568.2-D, re-embedded tested in acc. with IEC 60603-7-51 and 60512-27-100, interoperable and backwards compatible with Category 6 and Category 5e.
Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.
Tested in line with R&M's manufacturing control, performing 100% inspection.
Compatible with RJ standard plugs (RJ11, RJ12, RJ45), connection with automatic wire cutting of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 without special tools. X-Separator for individual pair shielding. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with >20 insertion cycles, contact resistance <5 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002. 90° wire orientation without bending cable. With integral cable strain relief, including dust cover. Shield contacting by patented shield lance with integral cable strain relief, shield material tin-coated bronze, ground contacting through 1 contact finger for flat connectors 4.8 x 0.5 mm.
Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Connection module Cat. 6A ISO, shielded, with EMC cover, dust cover, mounting plate, cable tie and installation instructions.
