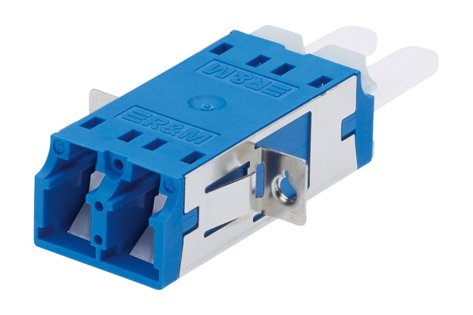

Adapter LC-Duplex PC, blue, ceramic SM, C, screwable (R820416)

Adapter LC-Duplex PC, blue, ceramic SM, C, screwable (R820416)

Adapter LC-Duplex with semi-transparent dust caps. Quick mounting clip and M2 thread integrated.

Артикул: R820416 Категорія:

Scope of supply

  • Adapter LC-Duplex

  • 2 Philips head screws M2 x 8, blue galvanized

Mechanical Data

Dimensions

55.0 mm x 22.0 mm x 9.35 mm / 2.165 in x 0.866 in x 0.368 in (W x H x D)

Material

steel: X10CrNi18-8 (1.4310) / plastic: PBT, fiber-glass reinforced (halogen-free)

Technical Data

Fiber type

Singlemode (SM)

Number of connectors (A)

1

Connector type (A)

LC-Duplex

Connector color (A)

blue

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Attenuation grade IL (A)

C

Connector class

adapter

Adapter fastening method

end cap

Sleeve material

ceramic

Standard

UL Listed

according to IEC 61754-20

LC-Duplex singlemode adapter in acc. with IEC 61754-20. Adapter body plus flange and integral quick-mounting clip and M2 thread, color metallic, material X10CrNi18-8. Housing blue (singlemode PC), material PBT / UL 94 V-0, zirconia (ceramic) alignment sleeve, integral self-closing metal laser protection flaps, semi-transparent plastic dust covers, allowing optical testing with test lasers without removing the covers. The adapter qualified in acc. with IEC 61753-1 for category U (uncontrolled environment).


Optical specifications:

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mechanical specifications:

  • Mating cycles: min. 500

  • Pull-out force: min. 70 N

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 500

  • Pull-out force: min. 70 N

  • Optional:

    Visual coding, mechanical coding and lock protection.
