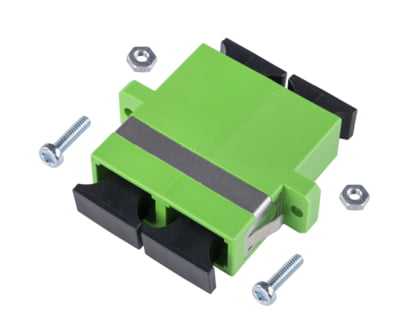

Adapter SC-Duplex APC, green, ceramic SM, C, screwable (R804260)

Adapter SC-Duplex APC, green, ceramic SM, C, screwable (R804260)

Adapter SC-Duplex APC, green, ceramic SM, C, screwable (R804260)

SKU: R804260 Category:

Scope of supply

  • SC-Duplex adapter

  • 2 Philips head screws M2 x 8, blue galvanized

  • 2 mounted hexagonal nuts M2, blue galvanized

Technical Data

Fiber type

Singlemode (SM)

Number of connectors (A)

1

Connector type (A)

SC-Duplex

Connector color (A)

green

Polishing plug (A)

APC 8°

Attenuation grade IL (A)

C

Connector class

adapter

Adapter fastening method

end cap

Sleeve material

ceramic

Standard

UL Listed

according to IEC 61754-4

SC-Duplex adapter singlemode in acc. with IEC 61754-4. Body plus flange and two hexagonal nuts M2 plus integral quick-mounting clip. Zirconia (ceramic) alignment sleeve, green plastic housing (singlemode) / UL 94 V-0, plastic dust cover. Adapter qualified in acc. with IEC 61753-1 for category U (uncontrolled environment).


Optical specifications:

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mechanical specifications:

  • Mating cycles: min. 500

  • Pull-out force: min. 70 N (per connector)

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 500

  • Pull-out force: min. 70 N (per connector)

  • Prod
