Adapter SC-Duplex PC, beige, ceramic MM, M, flangeless (R821235)

Adapter SC-Duplex PC, beige, ceramic MM, M, flangeless (R821235)

Adapter SC-Duplex PC, beige, ceramic MM, M, flangeless (R821235)

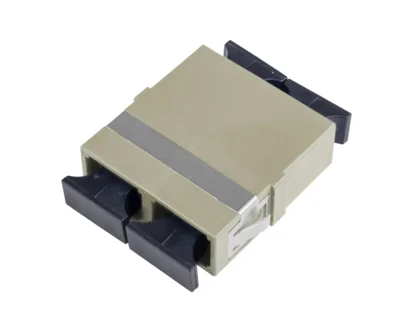

SC-Duplex adapter flangeless with dust caps. Quick mounting clip integrated.

Артикул: R821235 Категорія:
Technical Data

Fiber type

Multimode (MM)

Number of connectors (A)

1

Connector type (A)

SC-Duplex

Connector color (A)

beige

Polishing plug (A)

PC

Attenuation grade IL (A)

M

Connector class

adapter

Adapter fastening method

end cap snap-in

Sleeve material

ceramic

Standard

UL Listed

according to IEC 61754-4

SC-Duplex adapter multimode inacc. with IEC 61754-4. Flangeless body and integrated quick-mounting clip. Zirconia (ceramic) alignment sleeve, beige plastic housing (multimode) / UL 94 V-0, plastic dust covers. Adapter qualified in acc. with IEC 61753-1 for category U (uncontrolled environment).


Optical specifications:

  • Deltainsertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mechanical specifications:

  • Mating cycles: min. 500

  • Pull-out force: min. 70 N (per connector)

  • Delta insertion loss: ≤ 0.2 dB, testingmethod acc. to IEC 61300-3-4

  • Mating cycles: min. 500

  • Pull-out force: min. 70 N (per connector)

  • Prod
