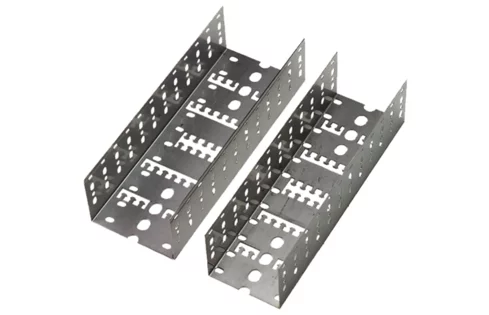

Back Mount Frame 10 pairs (25 mm), 100 x 850 mm / 34 (R27030-100-34)

Back Mount Frame 10 pairs (25 mm), 100 x 850 mm / 34 (R27030-100-34)

Back Mount Frame 10 pairs (25 mm), 100 x 850 mm / 34 (R27030-100-34)

Back mount frame 10 pairs (depth x length / max. number of modules). Designed to accommodate all VS Standard connection, disconnection and grounding modules.

Grid size: 25 mm.

Material: stainless steel (CrNi).

Артикул: R27030-100-34 Категорія:

Technical Data

DESCRIPTIONVALUE/VALUE RANGE
Protection class IP

IP 20

Assembly

empty

VS system

VS Standard

Number of pairs300 DA (max. 340 DA)
Grid size25 mm / 1 in
Mounting frame type

back mount frame

Mechanical Data

DESCRIPTIONVALUE/VALUE RANGE
Dimensions850.0 mm x 110.5 mm x 100.0 mm / 33.465 in x 4.35 in x 3.937 in (W x H x D)
Color

metallic

Material

steel: X5CrNi18-10 (1.4301)

Prod
