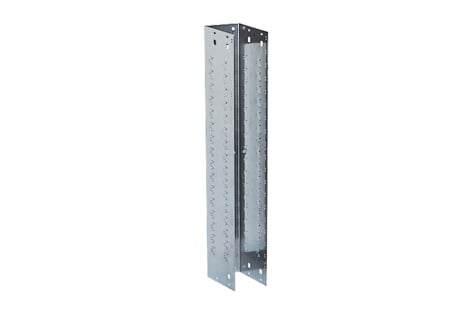

Back Mount Frame for Splitter, 38 x 4-port, 78 x 117 x 1000 mm (R308328)
Back Mount Frame for Splitter, 38 x 4-port, 78 x 117 x 1000 mm (R308328)
Back mount frames (port, WxDxH) for VS Compact 10 pairs modules with splitter boards.
Can be directly mounted to the freestanding distributor.
In the case of wall-mount distributors fastened directly to the wall rail kit.
Technical Data
| DESCRIPTION |
VALUE/VALUE RANGE |
| Protection class IP |
IP 20
|
| VS system |
VS Compact
|
| Grid size |
25 mm / 1 in |
| Mounting frame type |
back mount frame
|
Mechanical Data
| DESCRIPTION |
VALUE/VALUE RANGE |
| Dimensions |
999.6 mm x 78.0 mm x 118.0 mm / 39.354 in x 3.071 in x 4.646 in (W x H x D) |
| Material |
steel: X5CrNi18-10 (1.4301)
|
