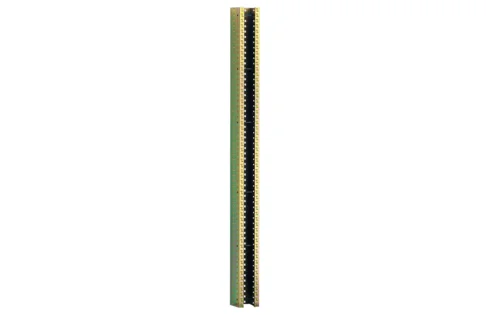

Back Mount Frame, type A, 210 x 1980 mm / 66 (R20176-210-66)

Back Mount Frame, type A, 210 x 1980 mm / 66 (R20176-210-66)

Back Mount Frame, type A, 210 x 1980 mm / 66 (R20176-210-66)

Designed to accommodate VS Modular connection modules in wall distributors and freestanding V/V distributors.

Grid size: 30 mm.

Material: sheet steel 1.25 mm (blue, chromatized).

Артикул: R20176-210-66 Категорія:

Scope of supply

  • Back mount frame (depth x length / number of modules)

  • Spacer

Mechanical Data

Dimensions

1980.0 mm x 120.0 mm x 210.0 mm / 77.953 in x 4.724 in x 8.268 in (W x H x D)

Color

blue, chromatized

Material

steel: DC04 (1.0338)

Technical Data

Number of pairs

Max. 10 DA Modul: 660 DA / 12 DA Modul: 792 DA

Assembly

empty

Mounting frame type

back mount frame

Grid size

30 mm / 1.2 in

Distributor housing type

intermediate distributor

VS system

VS Modular
