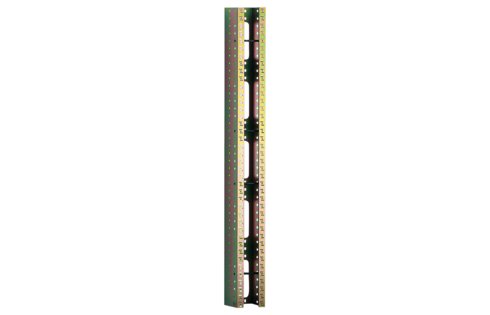

Back Mount Frame, type A/H, 60 x 2400 mm / 80 (R20048-060-80)

Back Mount Frame, type A/H, 60 x 2400 mm / 80 (R20048-060-80)

Back Mount Frame, type A/H, 60 x 2400 mm / 80 (R20048-060-80)

The VS Modular connection modules are inserted into these back mount frames in horizontal mounting operation.

Grid size: 30 mm.

Material: steel (DC04), blue galvanized.

Артикул: R20048-060-80 Категорія:

Scope of supply

  • Back mount frame (depth x length / number of modules)

  • Spacer

  • Cable grids

  • Jumpering grids

  • Edge protection with slider

Mechanical Data

Dimensions

2400.0 mm x 120.0 mm x 60.0 mm / 94.488 in x 4.724 in x 2.362 in (W x H x D)

Color

blue, chromatized

Material

steel: DC04 (1.0338)

Technical Data

Number of pairs

Max. 10 DA Modul: 800 DA / 12 DA Modul: 960 DA

Assembly

empty

Mounting frame type

back mount frame

Grid size

30 mm / 1.2 in

Distributor housing type

freestanding H/V distribution frame

VS system

VS Modular

Prod
