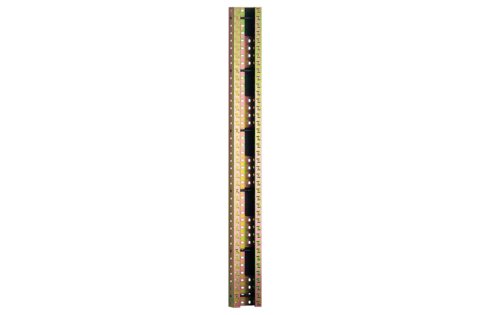

Back Mount Frame, type A/V, 60 x 240 mm / 8 (R20049-060-08)

Back Mount Frame, type A/V, 60 x 240 mm / 8 (R20049-060-08)

Back Mount Frame, type A/V, 60 x 240 mm / 8 (R20049-060-08)

The VS Modular connection modules are inserted into these back mount frames in vertical mounting operation.

Grid size: 30 mm.

Material: steel(DC04), blue galvanized.

Артикул: R20049-060-08 Категорія:

Scope of supply

  • Back mount frame (depth x length / number of modules)

  • Spacer

  • Cable grids

  • Jumpering grids

  • Edge protection with slider

  • Support rail to cable head

  • Fastening material

Mechanical Data

Dimensions

240.0 mm x 120.0 mm x 60.0 mm / 9.449 in x 4.724 in x 2.362 in (W x H x D)

Color

blue, chromatized

Material

steel: DC04 (1.0338)

Technical Data

Number of pairs

Max. 10 DA Modul: 80 DA / 12 DA Modul: 96 DA

Assembly

empty

Mounting frame type

back mount frame

Grid size

30 mm / 1.2 in

Distributor housing type

freestanding H/V distribution frame

VS system

VS Modular
