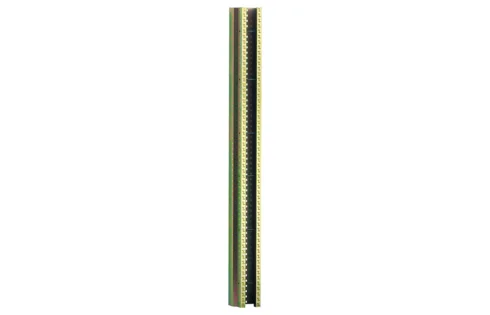

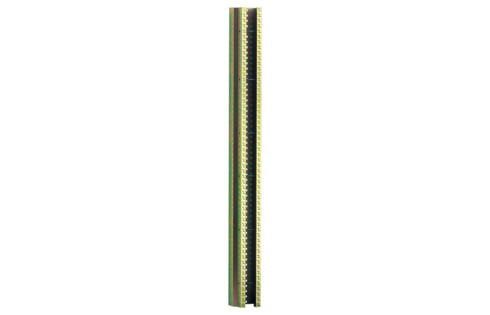

Back Mount Frame, type B, 150 x 2580 mm / 86 (R20177-150-86)

Back Mount Frame, type B, 150 x 2580 mm / 86 (R20177-150-86)

Back Mount Frame, type B, 150 x 2580 mm / 86 (R20177-150-86)

Designed to accommodate VS Modular connection modules in wall distributors and freestanding V/V distributors.

Grid size: 30 mm.

Material: steel (DC04), blue galvanized.

Артикул: R20177-150-86 Категорія:

Scope of supply

  • Back mount frame (depth x length / number of modules)

  • Spacer

Mechanical Data

Dimensions

2580.0 mm x 120.0 mm x 150.0 mm / 101.575 in x 4.724 in x 5.906 in (W x H x D)

Color

blue, chromatized

Material

steel: DC04 (1.0338)

Technical Data

Number of pairs

Max. 10 DA Modul: 860 DA / 12 DA Modul: 1032 DA

Assembly

empty

Mounting frame type

back mount frame

Grid size

30 mm / 1.2 in

Distributor housing type

intermediate distributor

VS system

VS Modular
