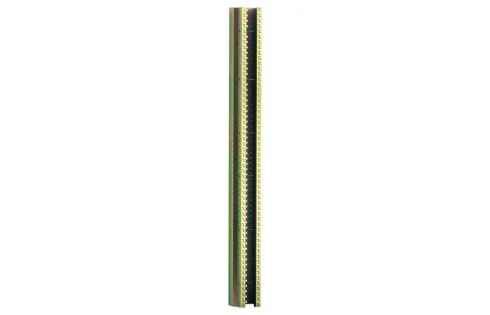

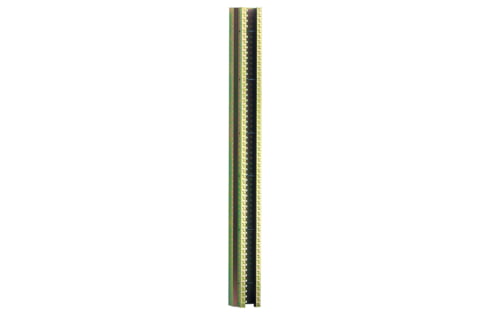

Back Mount Frame, type B, 210 x 2280 mm / 76 (R20177-210-76)

Back Mount Frame, type B, 210 x 2280 mm / 76 (R20177-210-76)

Back Mount Frame, type B, 210 x 2280 mm / 76 (R20177-210-76)

Designed to accommodate VS Modular connection modules in wall distributors and freestanding V/V distributors.

Grid size: 30 mm.

Material: steel (DC04), blue galvanized.

Артикул: R20177-210-76 Категорія:

Scope of supply

  • Back mount frame (depth x length / number of modules)

  • Spacer

Mechanical Data

Dimensions

2280.0 mm x 120.0 mm x 210.0 mm / 89.764 in x 4.724 in x 8.268 in (W x H x D)

Color

blue, chromatized

Material

steel: DC04 (1.0338)

Technical Data

Number of pairs

Max. 10 DA Modul: 760 DA / 12 DA Modul: 912 DA

Assembly

empty

Mounting frame type

back mount frame

Grid size

30 mm / 1.2 in

Distributor housing type

intermediate distributor

VS system

VS Modular
