Breakout Cable E-2000™ APC 12x - E-2000™ APC 12x, green/white, G.652.D, C/1, 20 m (R502427)

Name: Breakout Cable E-2000™ APC 12x - E-2000™ APC 12x, green/white, G.652.D, C/1, 20 m (R502427) - ДП "Сінергія"
SKU: R502427

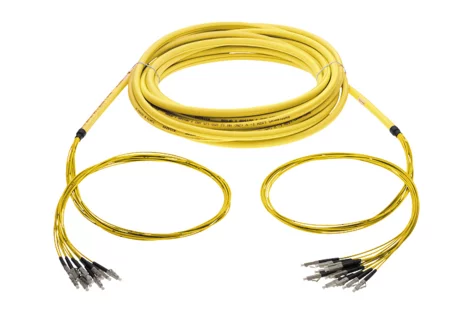

Breakout Cable E-2000™ APC 12x - E-2000™ APC 12x, green/white, G.652.D, C/1, 20 m (R502427)

Both sides fitted with 12 E-2000™ APC connector.
Connector color: green.
Lever color: white.
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Cable: Breakout 12-fibers, Ø 12.5 mm, yellow.
Fan-out legs of 1.0 m length (on both sides).

Артикул: R502427 Категорія: Misc

Mechanical Data

Color	yellow
Cable length	20 m

Technical Data

Conductor type FO	tight buffer
Fiber type	Singlemode (SM)
Fiber class	G.657.A1 (covers G.652.D, OS1, OS2)
Fiber diameter	n.a.
Number of connectors (A)	12
Number of connectors (B)	12
Cable type	Breakout cable
Cable design	I-V(ZN)HH
Jacket material	LSZH
Cable jacket characteristics	Cable, metal-free zero-halogen
Cable overall diameter	Ø 12.5 mm
Connector type (A)	E-2000™
Connector type (B)	E-2000™
Fiber Count	12
Connector color (A)	green
Connector color (B)	green
Lever color (A)	white
Lever color (B)	white
Polishing plug (A)	APC 8°
Polishing plug (B)	APC 8°
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	1
Return loss grade RL (B)	1
Attenuation grade IL (A)	C
Attenuation grade IL (B)	C
Connector class	connector
