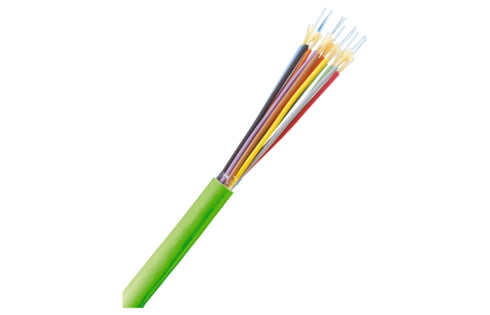

Breakout cables find their main use in secondary and tertiary cabling in generic cabling systems. The individual 2.0 mm-breakout elements consist of 900µm tight buffers surrounded by aramide yarn.
Sheath: LSZH, green.
Fiber: singlemode (SM) E9/125.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm |
IEC 60794-1-2 E11 IEC 60794-1-2 E3 IEC 60794-1-2 F1 IEC 60332-1 IEC 60332-3C IEC 61034 IEC 60754-2 ISO/IEC 11801:2002 |
| Protection class IP |
IP 20 |
| Cable type |
Breakout cable |
| Jacket material |
LSZH |
| CPR classification | Eca |
| Cable jacket characteristics |
Cable, metal-free Zero-halogen |
| Armour |
No protection |
| Cable overall diameter | 12.5 mm |
| Cable design |
I-V(ZN)HH |
| Fiber type |
singlemode (SM) |
| Fiber class |
G.652.D + G.657.A1 (OS1, OS2) |
| Fiber Count | 12 |
| Conductor type |
tight buffer |
| Fiber diameter |
E9 / 125 µm |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 2000.0 m / 6562 ft |
| Color |
green |
