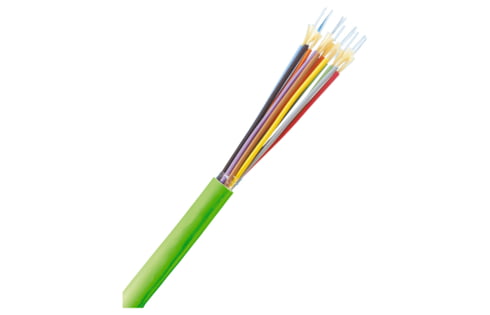

Breakout cables find their main use in secondary and tertiary cabling in generic cabling systems. The individual 2.0 mm-breakout elements consist of 900µm tight buffers surrounded by aramide yarn.
Sheath: LSZH, green.
Fiber: multimode (MM) G50/125.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm | IEC 60794-1-2 E11 IEC 60794-1-2 E3 IEC 60794-1-2 F1 IEC 60332-1 IEC 60332-3C IEC 61034 IEC 60754-2 ISO/IEC 11801:2002 |
| Protection class IP | IP 20 |
| Cable type | Breakout cable |
| Jacket material | LSZH |
| CPR classification | Dca |
| Cable jacket characteristics | Cable, metal-free Zero-halogen |
| Armour | No protection |
| Cable overall diameter | 12.5 mm |
| Cable design | I-V(ZN)HH |
| Fiber type | multimode (MM) |
| Fiber class | OM2 |
| Fiber Count | 12 |
| Conductor type | tight buffer |
| Fiber diameter | G50 / 125 µm |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 2000.0 m / 6562 ft |
| Color | green |
