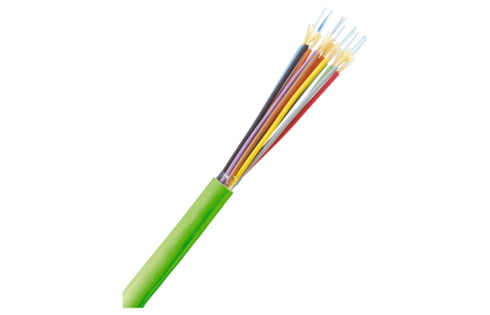

Breakout Cable I-V(ZN)HH, OM2, Dca, 6-fibers (R314467)

Breakout Cable I-V(ZN)HH, OM2, Dca, 6-fibers (R314467)

Breakout cables find their main use in secondary and tertiary cabling in generic cabling systems. The individual 2.0 mm-breakout elements consist of 900µm tight buffers surrounded by aramide yarn.

Sheath: LSZH, green.

Fiber: multimode (MM) G50/125.

Артикул: R314467 Категорія:

Technical Data

DESCRIPTION VALUE/VALUE RANGE
Standard / norm

IEC 60794-1-2 E11

IEC 60794-1-2 E3

IEC 60794-1-2 F1

IEC 60332-1

IEC 60332-3C

IEC 61034

IEC 60754-2

ISO/IEC 11801:2002

Protection class IP

IP 20

Cable type

Breakout cable

Jacket material

LSZH

CPR classification Dca
Cable jacket characteristics

Cable, metal-free

Zero-halogen

Armour

No protection

Cable overall diameter 8.5 mm
Cable design

I-V(ZN)HH

Fiber type

multimode (MM)

Fiber class

OM2

Fiber Count 6
Conductor type

tight buffer

Fiber diameter

G50 / 125 µm

Mechanical Data

DESCRIPTION VALUE/VALUE RANGE
Cable length 2000.0 m / 6562 ft
Color

green
