Both sides fitted with 12 LC PC connector.
Connector color: beige.
Fiber: MM G50/125 (OM3).
Cable: Breakout 12-fibers, Ø 12.5 mm, green.
Fan-out legs of 1.0 m length (on both sides).
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Protection class IP | IP 20 |
| Connector class | connector |
| Protection class IP (A) | IP 20 |
| Number of connectors (A) | 12 |
| Protection class IP (B) | IP 20 |
| Number of connectors (B) | 12 |
| Cable type | Breakout cable |
| Jacket material | LSZH |
| Cable jacket characteristics | Cable, metal-free Zero-halogen |
| Cable overall diameter | Ø 12.5 mm |
| Cable design | I-V(ZN)HH |
| Connector type (A) | LC |
| Polishing plug (A) | PC |
| Attenuation grade IL (A) | Bm |
| Return loss grade RL (A) | 3 |
| Connector color (A) | beige |
| Connector type (B) | LC |
| Polishing plug (B) | PC |
| Attenuation grade IL (B) | Bm |
| Return loss grade RL (B) | 3 |
| Connector color (B) | beige |
| Fiber type | multimode (MM) |
| Fiber class | OM3 |
| Fiber Count | 12 |
| Conductor type | tight buffer |
| Fiber diameter | G50 / 125 µm |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 15.0 m / 49 ft |
| Color | green |

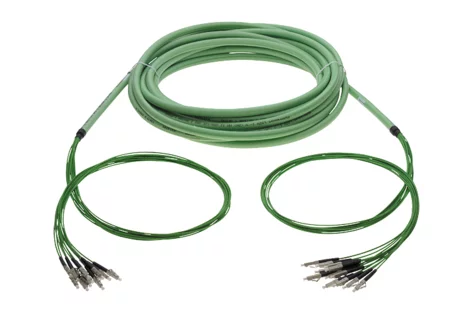

12-fiber breakout cable with UV stabilized LSZH sheath, Ø 12.5 mm, green, multimode G50 50/125 µm (OM3). Fan-out legs numbered and of 1.0 m length (on both sides), total length from connector to connector 17.0 m.
Fitted on both sides with 12 x LC connectors in acc. with IEC 61754-20. Zirconia (ceramic) ferrule with a PC polished endface geometry, connector qualified in acc. with IEC 61753-1 for category U (uncontrolled environment), beige connector housing (multimode), material PEI / UL 94 V-0, black strain relief, white dust cover cap, material plastic.
Optical specifications (random mated):
Performance:
Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.15 dB
Return loss (RL) Grade 3: ≥ 35 dB
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles
Pull-out force patch cord: ≥ 100 N (per connector)
