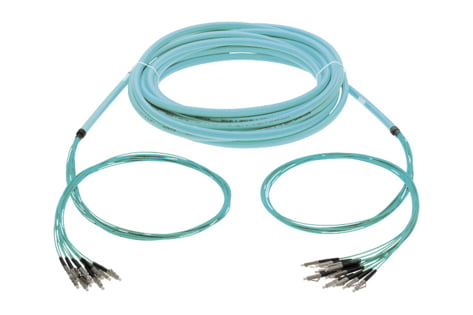

Breakout Cable SC PC 12x - SC PC 12x, beige, OM3, Bm/3, 30 m (R502251)

Name: Breakout Cable SC PC 12x - SC PC 12x, beige, OM3, Bm/3, 30 m (R502251) - ДП "Сінергія"
SKU: R502251

Both sides fitted with 12 SC PC connector.

Connector color: beige.

Fiber: MM G50/125 (OM3).

Cable: Breakout 12-fibers, Ø 12.5 mm, turquoise.

Fan-out legs of 1.0 m length (on both sides).

Артикул: R502251 Категорія: Misc

Mechanical Data

Color	turquoise/aqua
Cable length	30 m

Technical Data

Conductor type FO	tight buffer
Fiber type	Multimode (MM)
Fiber class	OM3
Fiber diameter	G50 / 125 µm
Number of connectors (A)	12
Number of connectors (B)	12
Cable type	Breakout cable
Cable design	I-V(ZN)HH
Jacket material	LSZH
Cable jacket characteristics	Cable, metal-free zero-halogen
Cable overall diameter	Ø 12.5 mm
Connector type (A)	SC
Connector type (B)	SC
Fiber Count	12
Connector color (A)	beige
Connector color (B)	beige
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	3
Return loss grade RL (B)	3
Attenuation grade IL (A)	Bm
Attenuation grade IL (B)	Bm
Connector class	connector
