Breakout Cable SC PC 12x - SC PC 12x, blue, G.652.D, C/2, 30 m (R502338)

Breakout Cable SC PC 12x - SC PC 12x, blue, G.652.D, C/2, 30 m (R502338)

Breakout Cable SC PC 12x - SC PC 12x, blue, G.652.D, C/2, 30 m (R502338)

Both sides fitted with 12 SC PC connector.
Connector color: blue.
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Cable: Breakout 12-fibers, Ø 12.5 mm, yellow.
Fan-out legs of 1.0 m length (on both sides).

Артикул: R502338 Категорія:
Mechanical Data

Color

yellow

Cable length

30 m

Technical Data

Conductor type FO

tight buffer

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

12

Number of connectors (B)

12

Cable type

Breakout cable

Cable design

I-V(ZN)HH

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

zero-halogen

Cable overall diameter

Ø 12.5 mm

Connector type (A)

SC

Connector type (B)

SC

Fiber Count

12

Connector color (A)

blue

Connector color (B)

blue

Polishing plug (A)

PC

Polishing plug (B)

PC

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss grade RL (A)

2

Return loss grade RL (B)

2

Attenuation grade IL (A)

C

Attenuation grade IL (B)

C

Connector class

connector

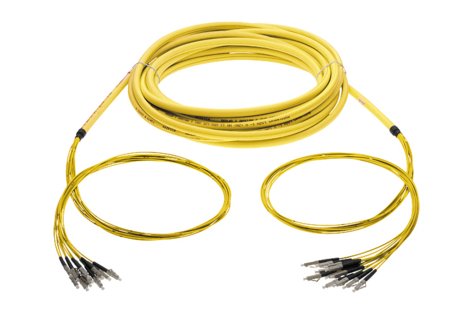

12-fiber breakout cable with LSZH sheath, Ø 12.5 mm, yellow, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2). Fan-out legs numbered and of 1.0 m length (on both sides), total length from connector to connector 32.0 m.

Fitted on both sides with 12 x SC connectors in acc. with IEC 61754-4. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors tuned in accordance with IEC 61755-3-1 and qualified in acc. with IEC 61753-1 for category U (uncontrolled environment). Blue connector housing (singlemode), material PBT / UL 94 V-0, blue strain relief, material TPE / UL 94 V-0 and plastic dust cover.

Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB
Return loss (RL) Grade 2: = 45 dB (typical = 55 dB)
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force patch cord: = 100 N
