Both sides fitted with 24 SC PC connector.
Connector color: blue.
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Cable: Breakout 24-fibers, Ø 14.5 mm, yellow.
Fan-out legs of 1.0 m length (on both sides).
|Conductor type FO|
G.657.A1 (covers G.652.D, OS1, OS2)
|Number of connectors (A)|
|Number of connectors (B)|
|Cable jacket characteristics|
|Cable overall diameter|
Ø 14.5 mm
|Connector type (A)|
|Connector type (B)|
|Connector color (A)|
|Connector color (B)|
|Polishing plug (A)|
|Polishing plug (B)|
|Protection class IP (A)|
|Protection class IP (B)|
|Return loss grade RL (A)|
|Return loss grade RL (B)|
|Attenuation grade IL (A)|
|Attenuation grade IL (B)|

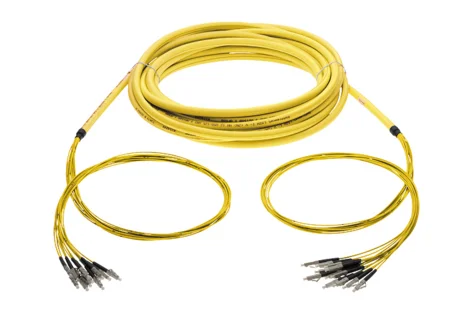

24-fiber breakout cable with LSZH sheath, Ø 14.5 mm, yellow, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2). Fan-out legs numbered and of 1.0 m length (on both sides), total length from connector to connector 12.0 m.
Fitted on both sides with 24 x SC connectors in acc. with IEC 61754-4. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors tuned in accordance with IEC 61755-3-1 and qualified in acc. with IEC 61753-1 for category U (uncontrolled environment). Blue connector housing (singlemode), material PBT / UL 94 V-0, blue strain relief, material TPE / UL 94 V-0 and plastic dust cover.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB
Return loss (RL) Grade 2: = 45 dB (typical = 55 dB)
Mating cycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force patch cord: = 100 N
