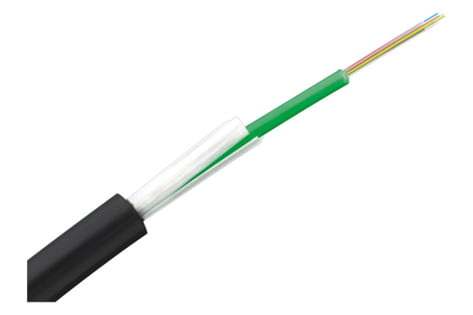

The outdoor cable for cable and supply ducts. The design is a central gel-filled loose tube of a diameter of 2.8 mm for 2 - 16 fibers and 3.5 mm for 18 - 24 fibers. Specially processed and reinforced glass yarns provide the cable's rodent protection.
Sheath: LLDPE, black
Fiber: multimode (MM) G50/125
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm |
IEC 60794-1-2 E1 IEC 60794-1-2 E11 IEC 60794-1-2 E3 IEC 60794-1-2 F1 IEC 60794-1-2 E4 IEC 60794-1-2 E7 IEC 60794-1-2 E10 IEC 60794-1-22 F5B |
| Cable type |
Central loose tube cable |
| Jacket material |
LLDPE |
| Cable jacket characteristics |
Cable, water-tight Cable, metal-free |
| Armour |
Rodent protection |
| Cable overall diameter | 6.5 mm |
| Fiber type |
OM2 |
| Fiber Count | 4 |
| Conductor type |
loose tube, gel-filled |
| Fiber diameter |
G50 / 125 µm |
| Application |
outdoor-use |
| DIN/VDE Code | A-DQ(ZN)B2Y |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 2000.0 m / 6562 ft |
| Color |
black |
