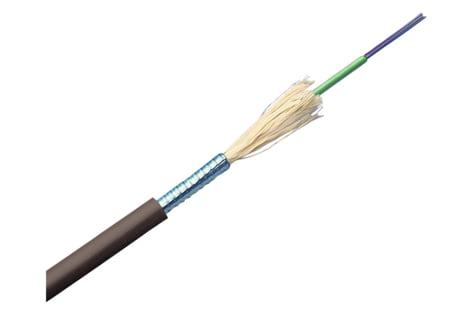

Central Loose Tube Cable A-D(ZN)(SR)2Y, G.652.D, 12-fibers (R304216)

The outdoor cable for applications in harsh conditions. It contains a central gel-filled loose tube of a diameter of 2.8 mm for 2 – 16 fibers or 3.5 mm for 18 – 24 fibers. The outer sheath is made of a 0.155 mm corrugated steel armor plus a 1.5 mm PE sheath.

Sheath: PE, black
Fiber: singlemode (SM) E9/125

Артикул: R304216

Опис

Technical Data

DESCRIPTION	VALUE/VALUE RANGE
Standard / norm	IEC 60794-1-2 E11 IEC 60794-1-2 E3 IEC 60794-1-2 F1 IEC 61034 IEC 60754-2 ISO/IEC 11801:2002
Cable type	Central loose tube cable
Jacket material	PE
Cable jacket characteristics	Cable, water-tight Zero-halogen
Armour	Steel-armored
Cable overall diameter	8.5 mm
Fiber type	G.652.D
Fiber Count	12
Conductor type	loose tube, gel-filled
Fiber diameter	E9 / 125 µm
Application	outdoor-use
DIN/VDE Code	A-D(ZN)(SR)2Y

Mechanical Data

DESCRIPTION	VALUE/VALUE RANGE
Cable length	2000.0 m / 6562 ft
Color	black
